frida复现某app算法

获取数据

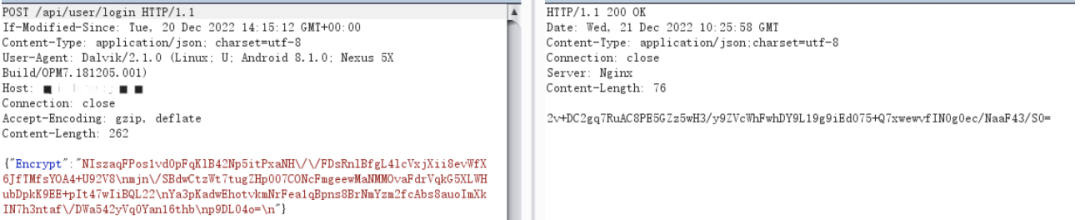

某app的登录界面抓包，发现参数都加密了

查验一下壳，未加壳，可以进行反编译

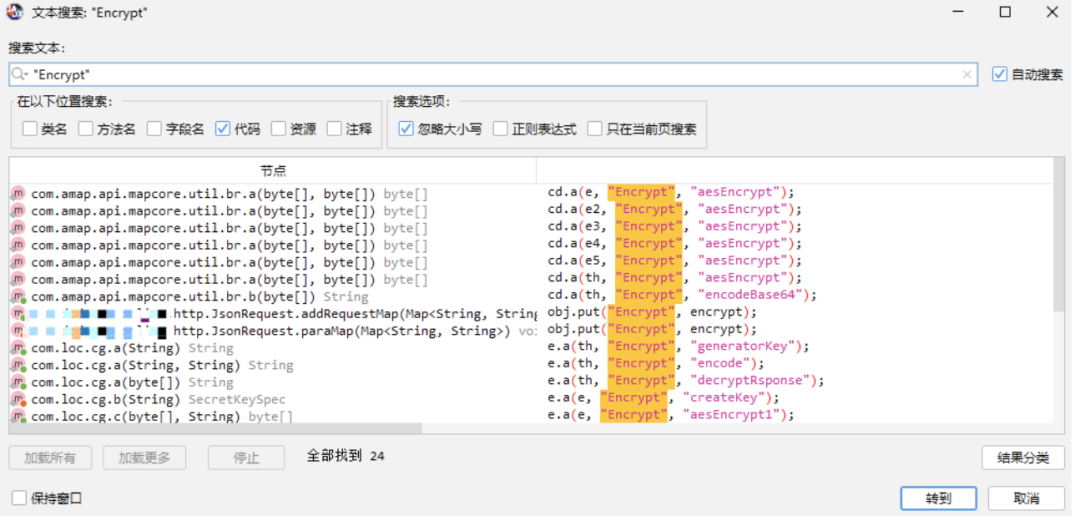

使用jadx进行反编译，尝试搜索一下参数名”Encrypt”，发现两个JsonRequest类的方法存在

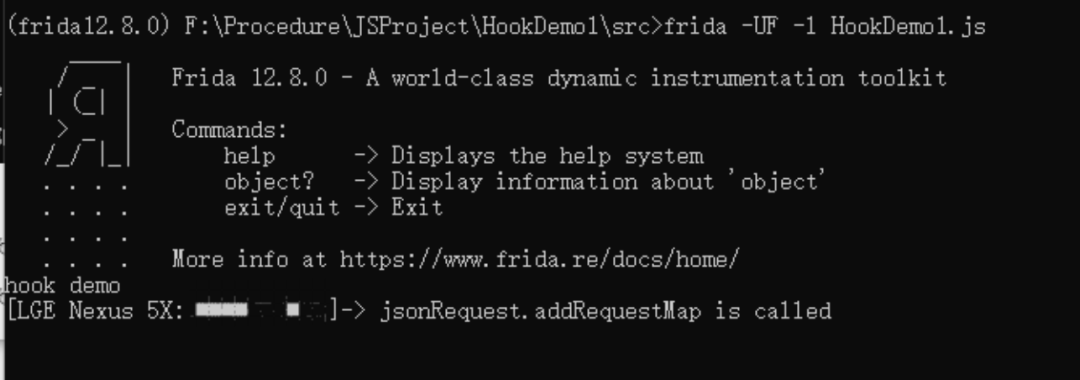

运用frida及其下面的代码在java层进行hook，发现只调用了addRequestMap方法

Java.perform(function (){
    console.log("hook demo")
    var jsonRequest = Java.use("com.online.http.JsonRequest");
    jsonRequest.addRequestMap .overload('java.util.Map', 'int').implementation = function (addMap,a){
        console.log("jsonRequest.addRequestMap is called");
        this.addRequestMap(addMap,a);
    }
    jsonRequest.paraMap.implementation = function (addMap){
        console.log("jsonRequest.paraMap is called");
        this.paraMap(addMap);
    }
});

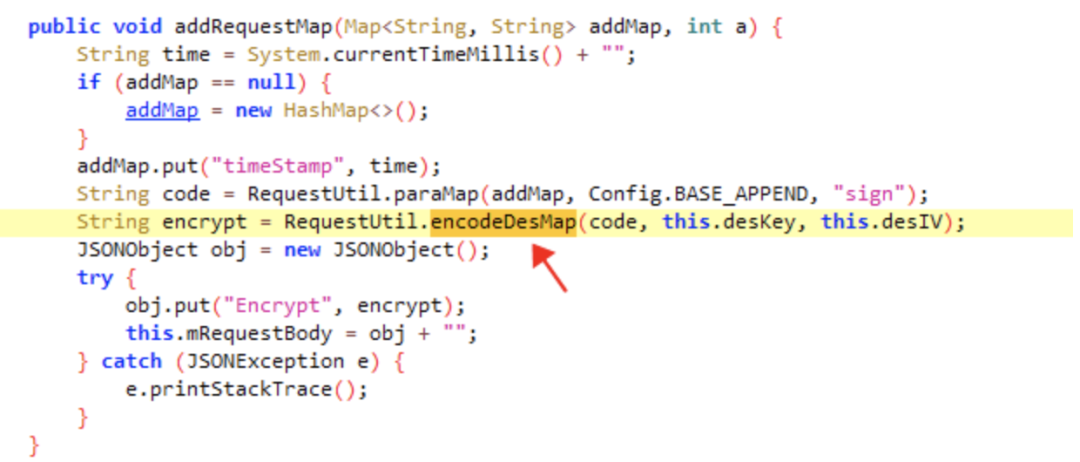

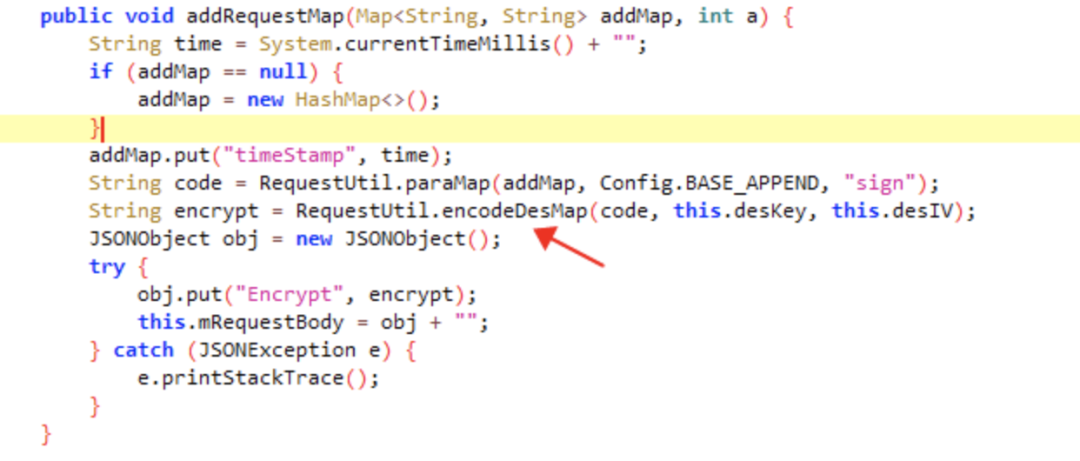

跟进addRequestMap方法，了解其使用des加密，hook该方法可获取明文及加密结果

hook代码

Java.perform(function () {
    var requestUtil = Java.use("com.online.http.RequestUtil");
    requestUtil.encodeDesMap.overload('java.lang.String', 'java.lang.String', 'java.lang.String').implementation = function (code,desKey,desIV){
        console.log("requestUtil.encodeDesMap is called")
        console.log("code:",code,"desKey:",desKey,"desIv:",desIV)
        var encodeDesMap = this.encodeDesMap(code,desKey,desIV);
        console.log("cncodeDesMap:",encodeDesMap);
        return encodeDesMap;
    }
});

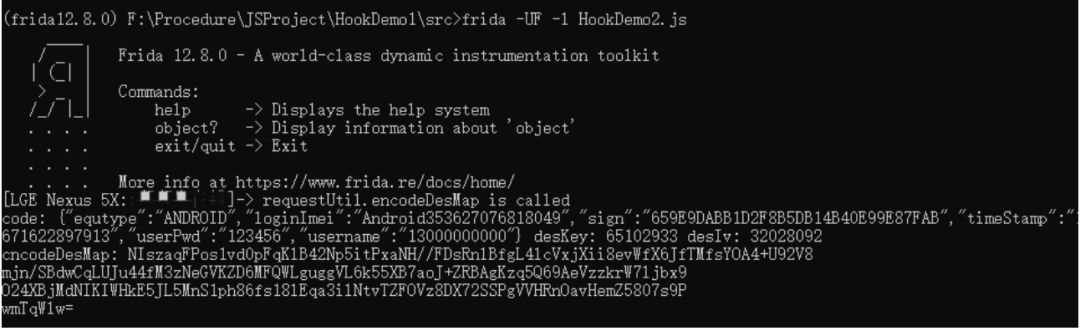

保存一下获得的数据

code: {"equtype":"ANDROID","loginImei":"Android353627076818049","sign":"659E9DABB1D2F8B5DB14B40E99E87FAB","timeStamp":"1671622897913","userPwd":"123456","username":"13000000000"} desKey: 65102933 desIv: 32028092
cncodeDesMap: NIszaqFPos1vd0pFqKlB42Np5itPxaNH//FDsRnlBfgL4lcVxjXii8evWfX6JfTMfsYOA4+U92V8
mjn/SBdwCqLUJu44fM3zNeGVKZD6MFQWLguggVL6k55XB7aoJ+ZRBAgKzq5Q69AeVzzkrW7ljbx9
O24XBjMdNIKIWHkE5JL5MnS1ph86fs18lEqa3ilNtvTZFOVz8DX72SSPgVVHRnOavHemZ5807s9P
wmTqWlw=

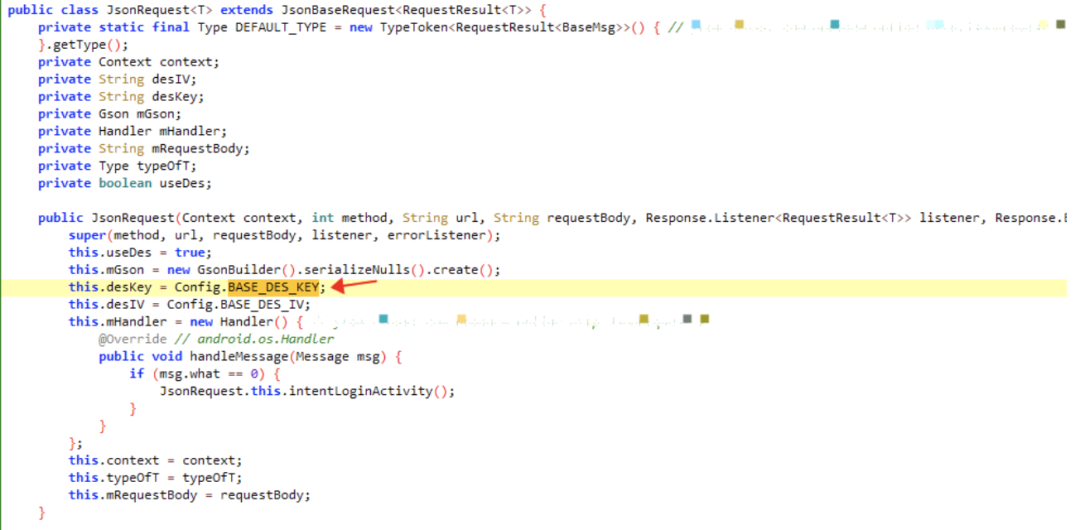

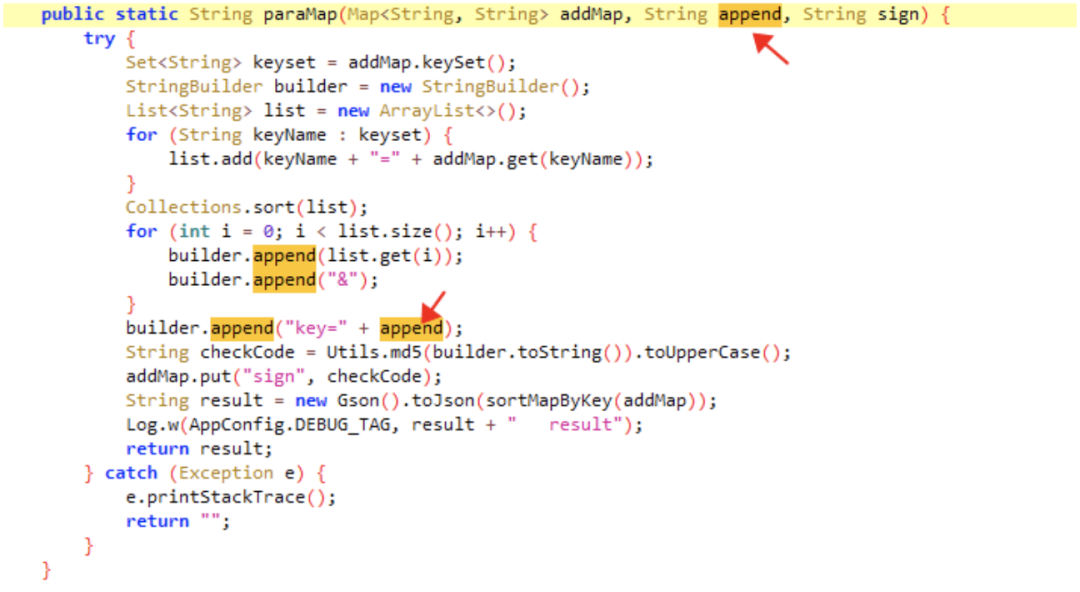

明文中存在desKey和desIv，跟进代码，可以看到这两值是固定的

数据中还有sign值不知道怎么来的

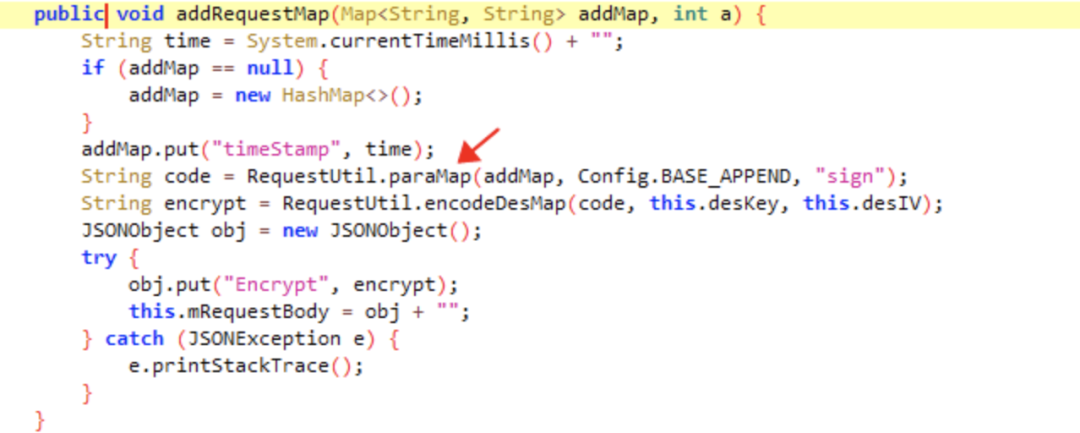

code数据都为paraMap方法中得来

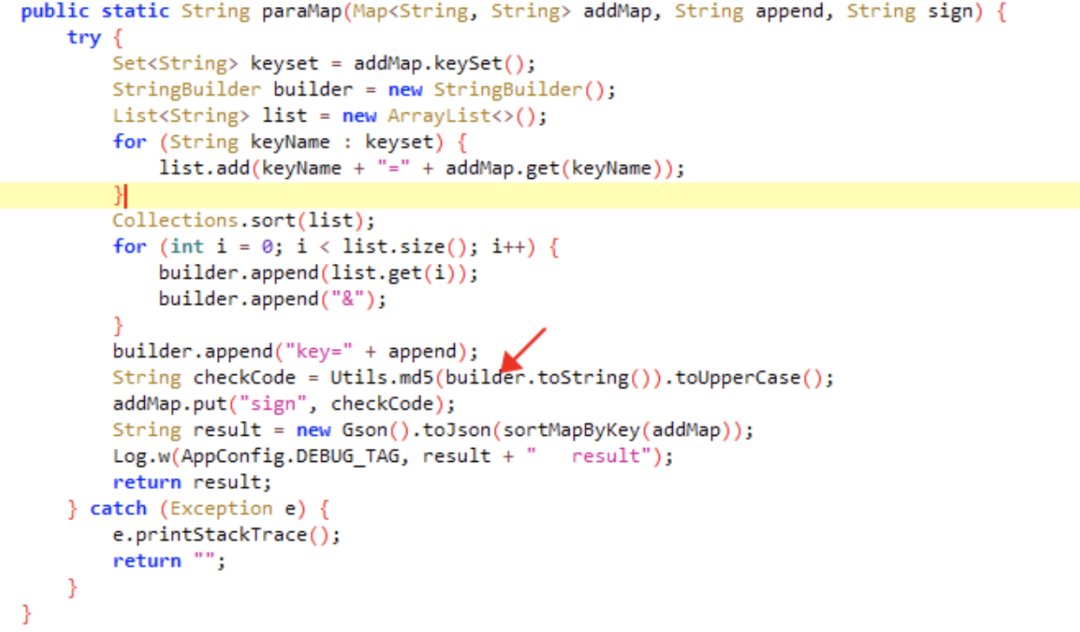

跟进该方法，md5加密前对数据进行了处理，hook该Utils.md5的方法的传参即可了解加密得到sign值的明文

hook代码

Java.perform(function () {
    var requestUtil = Java.use("com.online.http.RequestUtil");
    requestUtil.encodeDesMap.overload('java.lang.String', 'java.lang.String', 'java.lang.String').implementation = function (code,desKey,desIV){
        console.log("requestUtil.encodeDesMap is called")
        console.log("code:",code,"desKey:",desKey,"desIv:",desIV)
        var encodeDesMap = this.encodeDesMap(code,desKey,desIV);
        console.log("cncodeDesMap:",encodeDesMap);
        return encodeDesMap;
    }
});

保存一下获得的数据

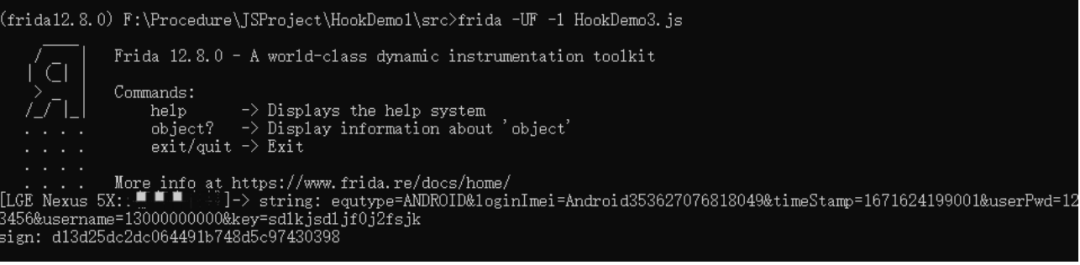

string: equtype=ANDROID&loginImei=Android353627076818049&timeStamp=1671624199001&userPwd=123456&username=13000000000&key=sdlkjsdljf0j2fsjk
sign: d13d25dc2dc064491b748d5c97430398

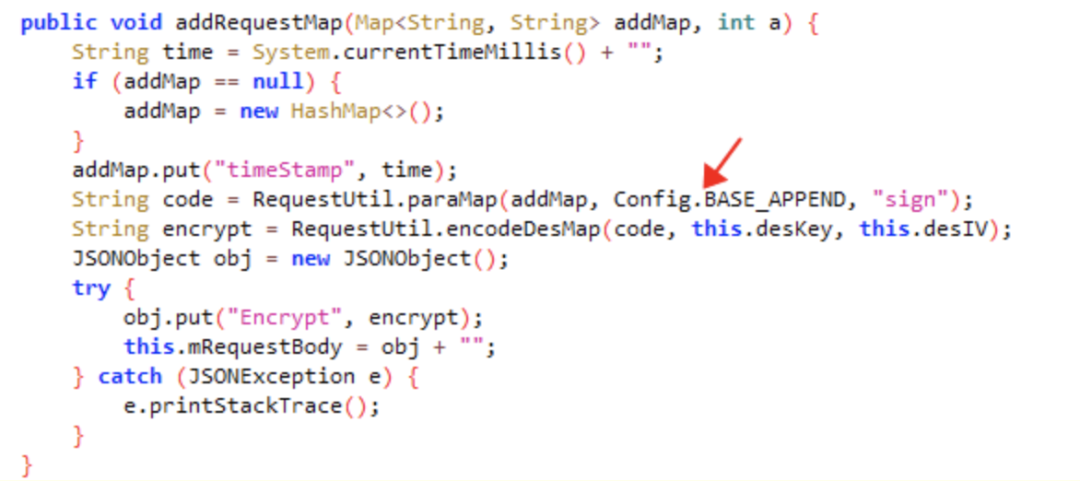

有一个key值

跟进发现为固定值

以上就获取了所有需要的信息，可以尝试进行加密算法复现了

sign明文:
string:equtype=ANDROID&loginImei=Android353627076818049&timeStamp=1671624199001&userPwd=123456&username=13000000000&key=sdlkjsdljf0j2fsjk
sign: d13d25dc2dc064491b748d5c97430398
加密算法:md5
des明文:
code: {"equtype":"ANDROID","loginImei":"Android353627076818049","sign":"659E9DABB1D2F8B5DB14B40E99E87FAB","timeStamp":"1671622897913","userPwd":"123456","username":"13000000000"} desKey: 65102933 desIv: 32028092
加密算法:des

还需要了解des算法的工作模式和填充方式

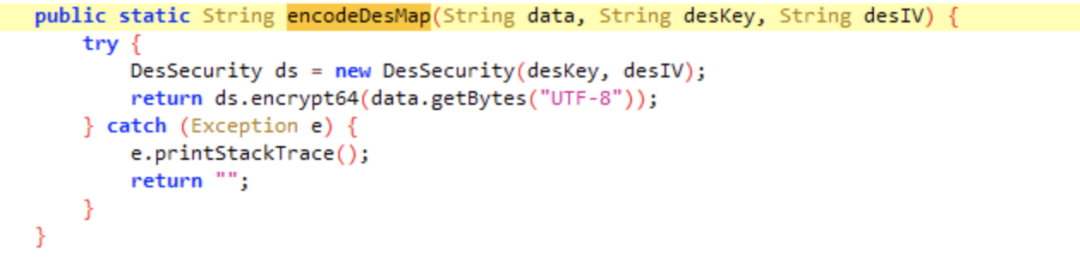

跟进encodeDesMap方法

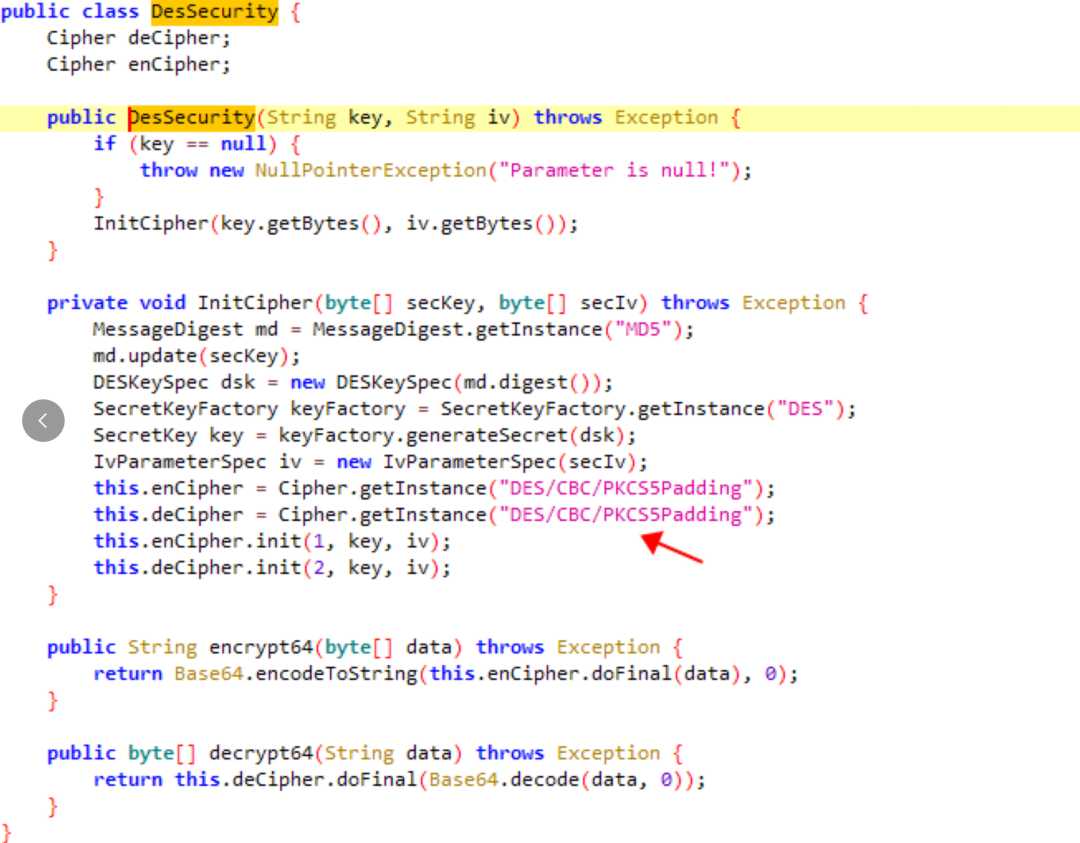

跟进DesSecurity类的实例化，了解到工作模式为CBC，填充方式为PKCS5Padding

至此，所有需要的信息都收集完毕了

算法复现

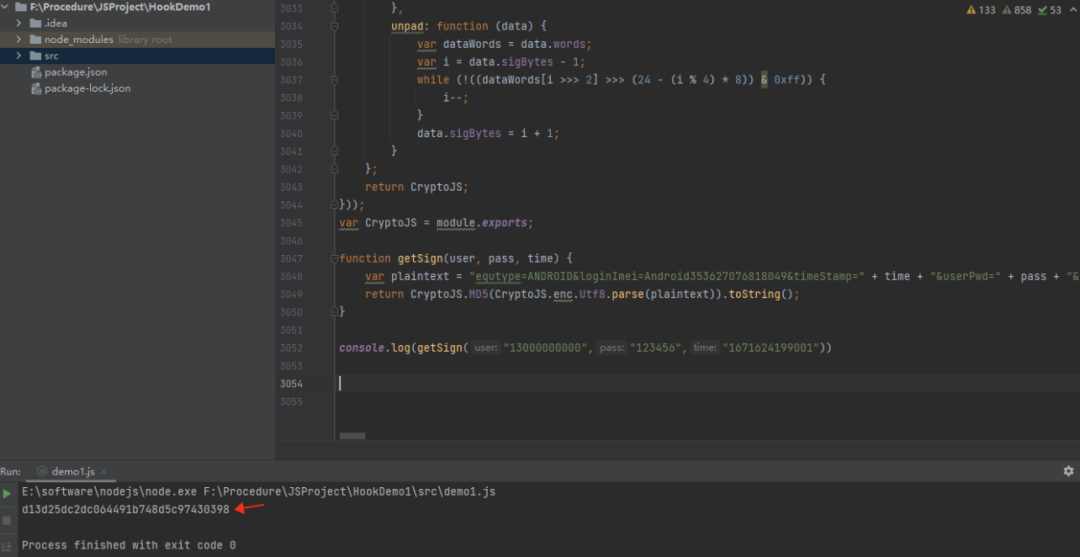

借助CryptJS获取sign的值

function getSign(user, pass, time) {
    var plaintext = "equtype=ANDROID&loginImei=Android353627076818049&timeStamp=" + time + "&userPwd=" + pass + "&username=" + user + "&key=sdlkjsdljf0j2fsjk";
    return CryptoJS.MD5(CryptoJS.enc.Utf8.parse(plaintext)).toString();
}
console.log(getSign("13000000000","123456","1671624199001"))

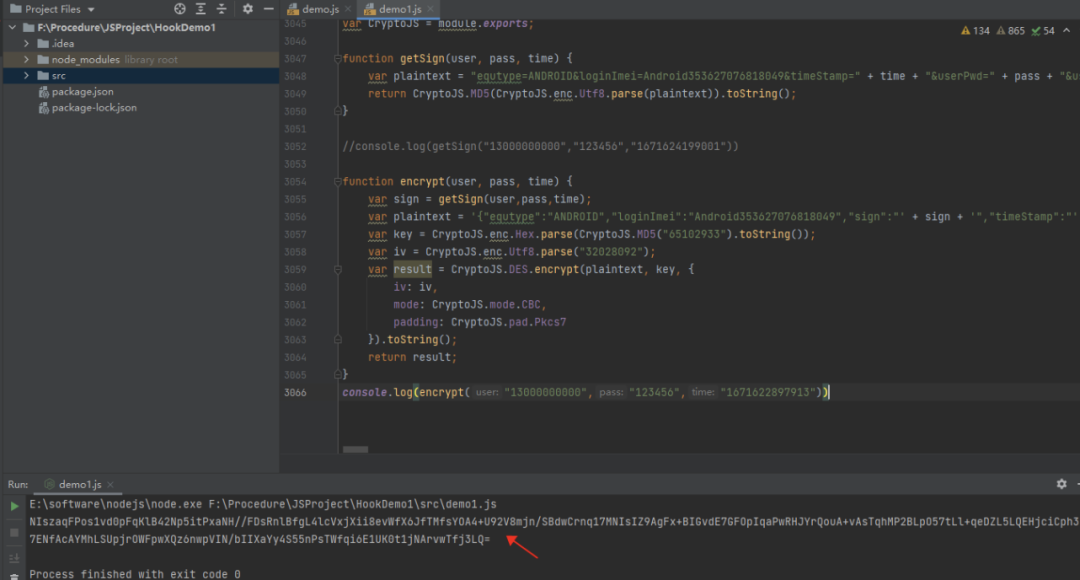

重新加密，由于填充方式为PKCS5Padding，每次填充的值不一样，每次加密整体结果不同，但未填充部分加密结果一样

function encrypt(user, pass, time) {
    var sign = getSign(user,pass,time);
    var plaintext = '{"equtype":"ANDROID","loginImei":"Android353627076818049","sign":"' + sign + '","timeStamp":"' + time + '","userPwd":"' + pass + '","username":"' + user + '"}';
    var key = CryptoJS.enc.Hex.parse(CryptoJS.MD5("65102933").toString());
    var iv = CryptoJS.enc.Utf8.parse("32028092");
    var result = CryptoJS.DES.encrypt(plaintext, key, {
        iv: iv,
        mode: CryptoJS.mode.CBC,
        padding: CryptoJS.pad.Pkcs7
    }).toString();
    return result;
}
console.log(encrypt("13000000000","123456","1671622897913"))
