3种常见的数据脱敏方案
VSole2023-03-03 15:45:32
目录
- SQL数据脱敏实现
- JAVA数据脱敏实现
- mybatis-mate-sensitive-jackson
1、SQL数据脱敏实现
MYSQL(电话号码,身份证)数据脱敏的实现
-- CONCAT()、LEFT()和RIGHT()字符串函数组合使用，请看下面具体实现 -- CONCAT(str1,str2,…)：返回结果为连接参数产生的字符串 -- LEFT(str,len)：返回从字符串str 开始的len 最左字符 -- RIGHT(str,len)：从字符串str 开始，返回最右len 字符 -- 电话号码脱敏sql： SELECT mobilePhone AS 脱敏前电话号码,CONCAT(LEFT(mobilePhone,3), '********' ) AS 脱敏后电话号码 FROM t_s_user -- 身份证号码脱敏sql: SELECT idcard AS 未脱敏身份证, CONCAT(LEFT(idcard,3), '****' ,RIGHT(idcard,4)) AS 脱敏后身份证号 FROM t_s_user
2、JAVA数据脱敏实现
可参考：海强 / sensitive-plus
https://gitee.com/strong_sea/sensitive-plus
数据脱敏插件，目前支持地址脱敏、银行卡号脱敏、中文姓名脱敏、固话脱敏、身份证号脱敏、手机号脱敏、密码脱敏 一个是正则脱敏、另外一个根据显示长度脱敏，默认是正则脱敏，可以根据自己的需要配置自己的规则。
3、mybatis-mate-sensitive-jackson
mybatisplus 的新作，可以测试使用，生产需要收费。
根据定义的策略类型，对数据进行脱敏，当然策略可以自定义。
# 目前已有
package mybatis.mate.strategy;
public interface SensitiveType {
String chineseName = "chineseName";
String idCard = "idCard";
String phone = "phone";
String mobile = "mobile";
String address = "address";
String email = "email";
String bankCard = "bankCard";
String password = "password";
String carNumber = "carNumber";
}

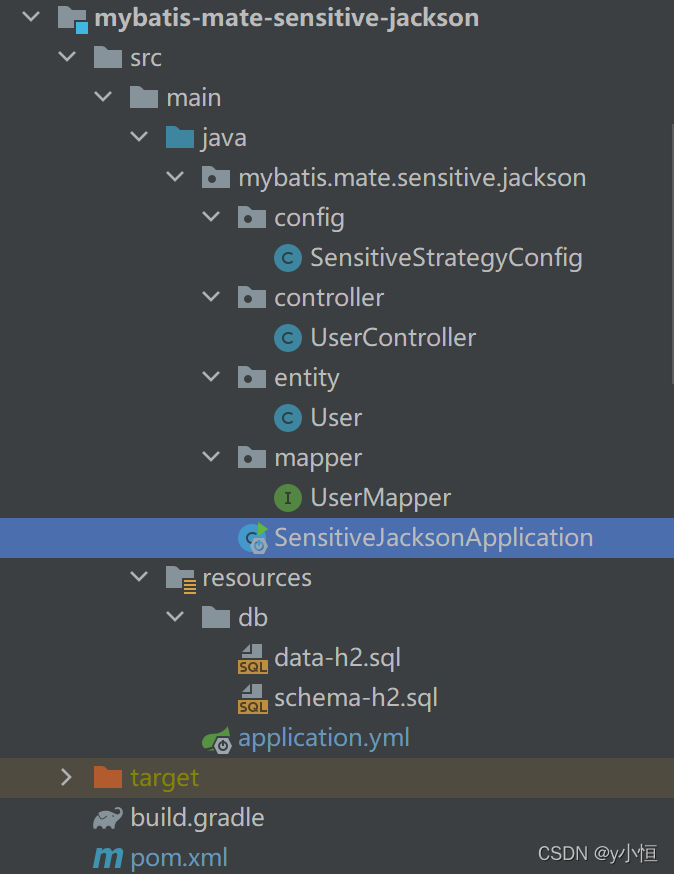

Demo 代码目录
1、pom.xml
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd"> <parent> <groupId>com.baomidougroupId> <artifactId>mybatis-mate-examplesartifactId> <version>0.0.1-SNAPSHOTversion> parent> <modelVersion>4.0.0modelVersion> <artifactId>mybatis-mate-sensitive-jacksonartifactId> <dependencies> <dependency> <groupId>mysqlgroupId> <artifactId>mysql-connector-javaartifactId> dependency> dependencies> project>
2、appliation.yml
# DataSource Config spring: datasource: # driver-class-name: org.h2.Driver # schema: classpath:db/schema-h2.sql # data: classpath:db/data-h2.sql # url: jdbc:h2:mem:test # username: root # password: test driver-class-name: com.mysql.cj.jdbc.Driver url: jdbc:mysql://localhost:3306/mybatis_mate?useSSL=false&useUnicode=true&characterEncoding=UTF-8&serverTimezone=UTC username: root password: 123456 # Mybatis Mate 配置 mybatis-mate: cert: # 请添加微信wx153666购买授权，不白嫖从我做起！ 测试证书会失效，请勿正式环境使用 grant: thisIsTestLicense license: as/bsBaSVrsA9FfjC/N77ruEt2/QZDrW+MHETNuEuZBra5mlaXZU+DE1ZvF8UjzlLCpH3TFVH3WPV+Ya7Ugiz1Rx4wSh/FK6Ug9lhos7rnsNaRB/+mR30aXqtlLt4dAmLAOCT56r9mikW+t1DDJY8TVhERWMjEipbqGO9oe1fqYCegCEX8tVCpToKr5J1g1V86mNsNnEGXujnLlEw9jBTrGxAyQroD7Ns1Dhwz1K4Y188mvmRQp9t7OYrpgsC7N9CXq1s1c2GtvfItHArkqHE4oDrhaPjpbMjFWLI5/XqZDtW3D+AVcH7pTcYZn6vzFfDZEmfDFV5fQlT3Rc+GENEg== # Logger Config logging: level: mybatis.mate: debug
3、Appliation启动类
package mybatis.mate.sensitive.jackson;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
@SpringBootApplication
public class SensitiveJacksonApplication {
// 测试访问 http://localhost:8080/info ，http://localhost:8080/list
public static void main(String[] args) {
SpringApplication.run(SensitiveJacksonApplication.class, args);
}
}
4、配置类，自定义脱敏策略
package mybatis.mate.sensitive.jackson.config;
import mybatis.mate.databind.ISensitiveStrategy;
import mybatis.mate.strategy.SensitiveStrategy;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
@Configuration
public class SensitiveStrategyConfig {
/**
* 注入脱敏策略
*/
@Bean
public ISensitiveStrategy sensitiveStrategy() {
// 自定义 testStrategy 类型脱敏处理
return new SensitiveStrategy().addStrategy("testStrategy", t -> t + "***test***");
}
}
5、业务类
User，注解标识脱敏字段，及选用脱敏策略
package mybatis.mate.sensitive.jackson.entity;
import lombok.Getter;
import lombok.Setter;
import mybatis.mate.annotation.FieldSensitive;
import mybatis.mate.sensitive.jackson.config.SensitiveStrategyConfig;
import mybatis.mate.strategy.SensitiveType;
@Getter
@Setter
public class User {
private Long id;
/**
* 这里是一个自定义的策略 {@link SensitiveStrategyConfig} 初始化注入
*/
@FieldSensitive("testStrategy")
private String username;
/**
* 默认支持策略 {@link SensitiveType }
*/
@FieldSensitive(SensitiveType.mobile)
private String mobile;
@FieldSensitive(SensitiveType.email)
private String email;
}
UserController
package mybatis.mate.sensitive.jackson.controller;
import mybatis.mate.databind.ISensitiveStrategy;
import mybatis.mate.databind.RequestDataTransfer;
import mybatis.mate.sensitive.jackson.entity.User;
import mybatis.mate.sensitive.jackson.mapper.UserMapper;
import mybatis.mate.strategy.SensitiveType;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RestController;
import javax.servlet.http.HttpServletRequest;
import java.util.HashMap;
import java.util.List;
import java.util.Map;
@RestController
public class UserController {
@Autowired
private UserMapper userMapper;
@Autowired
private ISensitiveStrategy sensitiveStrategy;
// 测试访问 http://localhost:8080/info
@GetMapping("/info")
public User info() {
return userMapper.selectById(1L);
}
// 测试返回 map 访问 http://localhost:8080/map
@GetMapping("/map")
public Map map() {
// 测试嵌套对象脱敏
Map userMap = new HashMap<>();
userMap.put("user", userMapper.selectById(1L));
userMap.put("test", 123);
userMap.put("userMap", new HashMap() {{
put("user2", userMapper.selectById(2L));
put("test2", "hi china");
}});
// 手动调用策略脱敏
userMap.put("mobile", sensitiveStrategy.getStrategyFunctionMap()
.get(SensitiveType.mobile).apply("15315388888"));
return userMap;
}
// 测试访问 http://localhost:8080/list
// 不脱敏 http://localhost:8080/list?skip=1
@GetMapping("/list")
public List list(HttpServletRequest request) {
if ("1".equals(request.getParameter("skip"))) {
// 跳过脱密处理
RequestDataTransfer.skipSensitive();
}
return userMapper.selectList(null);
}
}
UserMapper
package mybatis.mate.sensitive.jackson.mapper;
import com.baomidou.mybatisplus.core.mapper.BaseMapper;
import mybatis.mate.sensitive.jackson.entity.User;
import org.apache.ibatis.annotations.Mapper;
@Mapper
public interface UserMapper extends BaseMapper<User> {
}
6、测试
GET http://localhost:8080/list
[
{
"id": 1,
"username": "Jone***test***",
"mobile": "153******81",
"email": "t****@baomidou.com"
},
{
"id": 2,
"username": "Jack***test***",
"mobile": "153******82",
"email": "t****@baomidou.com"
},
{
"id": 3,
"username": "Tom***test***",
"mobile": "153******83",
"email": "t****@baomidou.com"
}
]
GET http://localhost:8080/list?skip=1
[
{
"id": 1,
"username": "Jone",
"mobile": "15315388881",
"email": "test1@baomidou.com"
},
{
"id": 2,
"username": "Jack",
"mobile": "15315388882",
"email": "test2@baomidou.com"
},
{
"id": 3,
"username": "Tom",
"mobile": "15315388883",
"email": "test3@baomidou.com"
}
]
