漏洞概述
S2-007的漏洞原理是在处理类型转换的错误时会存入错误到内存中，在后续调用流程中触发OGNL表达式注入。
影响版本：2.0.0 – 2.2.3
复现版本：2.2.3
官方issue地址：https://cwiki.apache.org/confluence/display/WW/S2-007
搭建环境
由于本漏洞发生在Bean中某个Property类型转换时，因此需要我们编写一个Action类：
import com.opensymphony.xwork2.ActionSupport;
public class LoginAction extends ActionSupport { private String username; private String password; private int age;
public String getUsername() { return username; }
public String getPassword() { return password; }
public int getAge() { return age; }
public void setUsername(String username) { this.username = username; }
public void setPassword(String password) { this.password = password; }
public void setAge(int age) { this.age = age; }
public String execute() throws Exception{ if (this.username == null || this.password == null) { return "failed"; }
if (this.username.equals("admin") && this.password.equals("admin")) { return "success"; }
return "failed"; }}
接着分别编写两个JSP文件，index.jsp用于模拟用户登陆后的界面，login.jsp用户模拟登陆界面。
index.jsp：
<%@ page contentType="text/html;charset=UTF-8" language="java" %><html> <head> <title>Admin Consoletitle> head> <body> Hello admin body>html>
login.jsp：
<%@ page language="java" contentType="text/html; charset=UTF-8" pageEncoding="UTF-8"%><%@ taglib prefix="s" uri="/struts-tags" %><html><head> <meta http-equiv="Content-Type" content="text/html; charset=UTF-8"> <title>S2-007title>head><body><h2>S2-007 Demoh2><p>link: <a href="https://struts.apache.org/docs/s2-007.html">https://struts.apache.org/docs/s2-007.htmla>p> <s:form action="login"> <s:textfield name="username" label="username" /> <s:textfield name="password" label="password" /> <s:textfield name="age" label="age" /> <s:submit>s:submit>s:form>body>html>
接着编写struts.xml用于定义路由以及成功、失败、错误时的渲染页面：
"-//Apache Software Foundation//DTD Struts Configuration 2.0//EN" "http://struts.apache.org/dtds/struts-2.0.dtd"> <struts> <package name="st2-demo" extends="struts-default"> <action name="login" class="LoginAction"> <result name="success">index.jspresult> <result name="failed">login.jspresult> <result name="input">login.jspresult> action> package>struts>

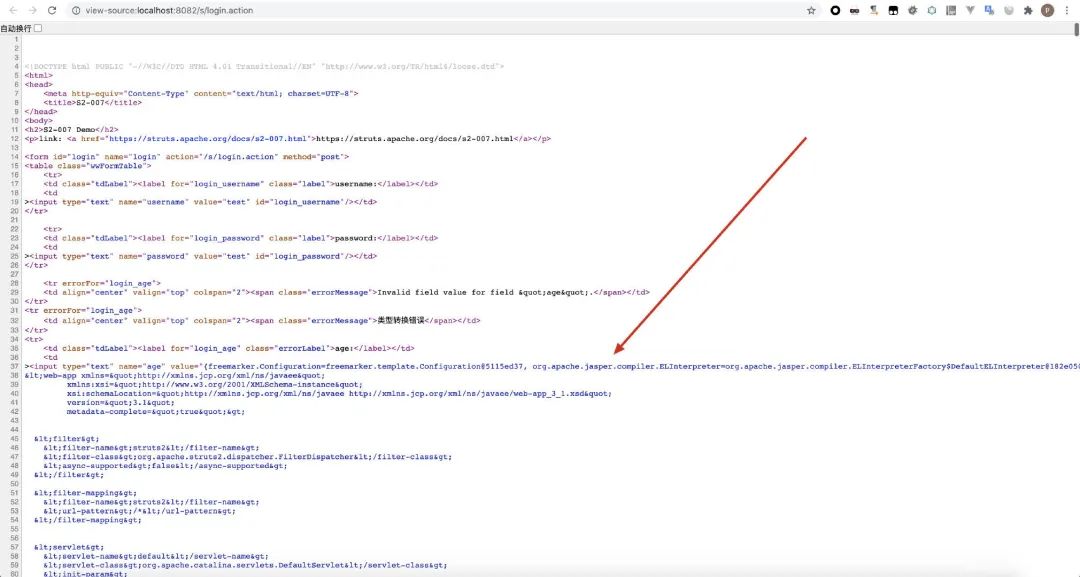

随后配置一下WEB服务器，部署后通过'+(#application)+'这个Payload测试是否回显相关信息：
漏洞分析
2.0 上报错误
之前介绍过Struts2存在着许多拦截器用于在请求真正执行到execute方法前的封装，其中就有一个ParametersInterceptor，在这里会将请求中的参数赋到当前请求对应的Bean上，请求中的参数一定是String类型的，但是Bean中的数据类型并不一定是String类型的，这个时候会自动进行一个类型转换，当转换发生错误时，会将错误进行记录。
比如aaa必然不可能被转为int类型，但如果是123（String）还是可以被转为int类型的，具体转换的逻辑我就不在这展开记录了，本文的重点是错误记录部分。
相关代码：
com.opensymphony.xwork2.conversion.impl.XWorkConverter#handleConversionExceptionprotected void handleConversionException(Map<String, Object> context, String property, Object value, Object object) { if (context != null && Boolean.TRUE.equals(context.get("report.conversion.errors"))) { String realProperty = property; String fullName = (String)context.get("conversion.property.fullName"); if (fullName != null) { realProperty = fullName; }
Map<String, Object> conversionErrors = (Map)context.get("com.opensymphony.xwork2.ActionContext.conversionErrors"); if (conversionErrors == null) { conversionErrors = new HashMap(); context.put("com.opensymphony.xwork2.ActionContext.conversionErrors", conversionErrors); }
((Map)conversionErrors).put(realProperty, value); }
}
在类型转换过程中触发的异常会通过handleConversionException方法进行搜集，但前提是report.conversion.errors这个键必须为true，默认情况下这个键是为true的。
随后会获取转换出错的property名称以及com.opensymphony.xwork2.ActionContext.conversionErrors这个Map并对其进行初始化，最终将property名称以及其对应的值放入这个Map中。
相关调用栈：
handleConversionException:438, XWorkConverter (com.opensymphony.xwork2.conversion.impl)convertValue:338, XWorkConverter (com.opensymphony.xwork2.conversion.impl)convertValue:39, OgnlTypeConverterWrapper (com.opensymphony.xwork2.ognl)getConvertedType:1060, OgnlRuntime (ognl)getConvertedTypes:1077, OgnlRuntime (ognl)getConvertedMethodAndArgs:1103, OgnlRuntime (ognl)getAppropriateMethod:1189, OgnlRuntime (ognl)callAppropriateMethod:1203, OgnlRuntime (ognl)setMethodValue:1474, OgnlRuntime (ognl)setPossibleProperty:85, ObjectPropertyAccessor (ognl)setProperty:162, ObjectPropertyAccessor (ognl)setProperty:27, ObjectAccessor (com.opensymphony.xwork2.ognl.accessor)setProperty:2245, OgnlRuntime (ognl)setProperty:77, CompoundRootAccessor (com.opensymphony.xwork2.ognl.accessor)setProperty:2245, OgnlRuntime (ognl)setValueBody:127, ASTProperty (ognl)evaluateSetValueBody:220, SimpleNode (ognl)setValue:301, SimpleNode (ognl)setValue:737, Ognl (ognl)setValue:209, OgnlUtil (com.opensymphony.xwork2.ognl)trySetValue:173, OgnlValueStack (com.opensymphony.xwork2.ognl)setValue:160, OgnlValueStack (com.opensymphony.xwork2.ognl)setValue:151, OgnlValueStack (com.opensymphony.xwork2.ognl)setParameters:288, ParametersInterceptor (com.opensymphony.xwork2.interceptor)doIntercept:199, ParametersInterceptor (com.opensymphony.xwork2.interceptor)intercept:98, MethodFilterInterceptor (com.opensymphony.xwork2.interceptor)invoke:248, DefaultActionInvocation (com.opensymphony.xwork2)doIntercept:207, ParametersInterceptor (com.opensymphony.xwork2.interceptor)intercept:98, MethodFilterInterceptor (com.opensymphony.xwork2.interceptor)invoke:248, DefaultActionInvocation (com.opensymphony.xwork2)intercept:190, StaticParametersInterceptor (com.opensymphony.xwork2.interceptor)invoke:248, DefaultActionInvocation (com.opensymphony.xwork2)intercept:75, MultiselectInterceptor (org.apache.struts2.interceptor)invoke:248, DefaultActionInvocation (com.opensymphony.xwork2)intercept:94, CheckboxInterceptor (org.apache.struts2.interceptor)invoke:248, DefaultActionInvocation (com.opensymphony.xwork2)intercept:243, FileUploadInterceptor (org.apache.struts2.interceptor)invoke:248, DefaultActionInvocation (com.opensymphony.xwork2)intercept:100, ModelDrivenInterceptor (com.opensymphony.xwork2.interceptor)invoke:248, DefaultActionInvocation (com.opensymphony.xwork2)intercept:141, ScopedModelDrivenInterceptor (com.opensymphony.xwork2.interceptor)invoke:248, DefaultActionInvocation (com.opensymphony.xwork2)intercept:270, DebuggingInterceptor (org.apache.struts2.interceptor.debugging)invoke:248, DefaultActionInvocation (com.opensymphony.xwork2)intercept:145, ChainingInterceptor (com.opensymphony.xwork2.interceptor)invoke:248, DefaultActionInvocation (com.opensymphony.xwork2)doIntercept:171, PrepareInterceptor (com.opensymphony.xwork2.interceptor)intercept:98, MethodFilterInterceptor (com.opensymphony.xwork2.interceptor)invoke:248, DefaultActionInvocation (com.opensymphony.xwork2)intercept:176, I18nInterceptor (com.opensymphony.xwork2.interceptor)invoke:248, DefaultActionInvocation (com.opensymphony.xwork2)intercept:164, ServletConfigInterceptor (org.apache.struts2.interceptor)invoke:248, DefaultActionInvocation (com.opensymphony.xwork2)intercept:190, AliasInterceptor (com.opensymphony.xwork2.interceptor)invoke:248, DefaultActionInvocation (com.opensymphony.xwork2)intercept:187, ExceptionMappingInterceptor (com.opensymphony.xwork2.interceptor)invoke:248, DefaultActionInvocation (com.opensymphony.xwork2)execute:52, StrutsActionProxy (org.apache.struts2.impl)serviceAction:498, Dispatcher (org.apache.struts2.dispatcher)doFilter:434, FilterDispatcher (org.apache.struts2.dispatcher)internalDoFilter:239, ApplicationFilterChain (org.apache.catalina.core)doFilter:206, ApplicationFilterChain (org.apache.catalina.core)invoke:219, StandardWrapperValve (org.apache.catalina.core)invoke:106, StandardContextValve (org.apache.catalina.core)invoke:501, AuthenticatorBase (org.apache.catalina.authenticator)invoke:142, StandardHostValve (org.apache.catalina.core)invoke:79, ErrorReportValve (org.apache.catalina.valves)invoke:610, AbstractAccessLogValve (org.apache.catalina.valves)invoke:88, StandardEngineValve (org.apache.catalina.core)service:516, CoyoteAdapter (org.apache.catalina.connector)process:1086, AbstractHttp11Processor (org.apache.coyote.http11)process:659, AbstractProtocol$AbstractConnectionHandler (org.apache.coyote)process:223, Http11NioProtocol$Http11ConnectionHandler (org.apache.coyote.http11)doRun:1558, NioEndpoint$SocketProcessor (org.apache.tomcat.util.net)run:1515, NioEndpoint$SocketProcessor (org.apache.tomcat.util.net)runWorker:1149, ThreadPoolExecutor (java.util.concurrent)run:624, ThreadPoolExecutor$Worker (java.util.concurrent)run:61, TaskThread$WrappingRunnable (org.apache.tomcat.util.threads)run:748, Thread (java.lang)
2.1 错误处理
前面说到，在ParametersInterceptor进行类型转换时产生的错误会被存入com.opensymphony.xwork2.ActionContext.conversionErrors中。
在后续流程中，会使用ConversionErrorInterceptor对前面产生的错误进行处理：
com.opensymphony.xwork2.interceptor.ConversionErrorInterceptor#interceptpublic String intercept(ActionInvocation invocation) throws Exception { ActionContext invocationContext = invocation.getInvocationContext(); Map<String, Object> conversionErrors = invocationContext.getConversionErrors(); ValueStack stack = invocationContext.getValueStack(); HashMap<Object, Object> fakie = null; Iterator i$ = conversionErrors.entrySet().iterator();
while(i$.hasNext()) { Entry<String, Object> entry = (Entry)i$.next(); String propertyName = (String)entry.getKey(); Object value = entry.getValue(); if (this.shouldAddError(propertyName, value)) { String message = XWorkConverter.getConversionErrorMessage(propertyName, stack); Object action = invocation.getAction(); if (action instanceof ValidationAware) { ValidationAware va = (ValidationAware)action; va.addFieldError(propertyName, message); }
if (fakie == null) { fakie = new HashMap(); }
fakie.put(propertyName, this.getOverrideExpr(invocation, value)); } }
if (fakie != null) { stack.getContext().put("original.property.override", fakie); invocation.addPreResultListener(new PreResultListener() { public void beforeResult(ActionInvocation invocation, String resultCode) { Map<Object, Object> fakie = (Map)invocation.getInvocationContext().get("original.property.override"); if (fakie != null) { invocation.getStack().setExprOverrides(fakie); }
} }); }
return invocation.invoke(); }
这里首先通过getConversionErrors获取到所有的错误，随后通过while循环对错误进行处理，首先获取其key&value，接着通过shouldAddError判断value或propertyName是否为空，如果不为空则继续进入if的代码块中。
在if的代码块中会获取到这个错误对应的message以及当前请求对应的Action，并在Action实现了ValidationAware类的情况下调用其addFielderror方法，但是这都不是重点，重点在下面的fakie.put。
注意看，这里调用了getOverrideExpr方法对value进行处理：
protected Object getOverrideExpr(ActionInvocation invocation, Object value) { ValueStack stack = invocation.getStack();
String var4; try { stack.push(value); var4 = "'" + stack.findValue("top", String.class) + "'"; } finally { stack.pop(); }
return var4; }
这里首先将value压入栈中，随后通过top语法取出value并在左右两侧进行一个'的拼接，最后通过pop方法取出前面压入栈中的value，并且将上面拼接完毕的value返回，此时我们的Payload由'+(#application)+'转为了''+(#application)+''，可以发现左右两侧的单引号被我们人为闭合了，这里为后面的漏洞利用埋下了一个伏笔。
在value被拼接完后会被放入fakie中，最后在invocation中添加了一个PreResultListener，这里取出了前面的fakie，并且会调用setExprOverrides对其进行处理：
public void setExprOverrides(Map<Object, Object> overrides) { if (this.overrides == null) { this.overrides = overrides; } else { this.overrides.putAll(overrides); }
}
setExprOverrides会将传入的overrides赋到this.overrides这个属性上，最后会在模板渲染时，通过lookupForOverrides方法从this.overrides中取出某个键对应的值。
private String lookupForOverrides(String expr) { if (this.overrides != null && this.overrides.containsKey(expr)) { expr = (String)this.overrides.get(expr); }
return expr; }
最终会调用getValue方法处理取出来的值，getValue的过程中会触发OGNL表达式解析，这个在S2-001中有过相关介绍，这里就不重复记录了。
完整调用栈：
tryFindValue:331, OgnlValueStack (com.opensymphony.xwork2.ognl)tryFindValueWhenExpressionIsNotNull:307, OgnlValueStack (com.opensymphony.xwork2.ognl)findValue:293, OgnlValueStack (com.opensymphony.xwork2.ognl)findValue:350, OgnlValueStack (com.opensymphony.xwork2.ognl)translateVariables:196, TextParseUtil (com.opensymphony.xwork2.util)translateVariables:115, TextParseUtil (com.opensymphony.xwork2.util)translateVariables:88, TextParseUtil (com.opensymphony.xwork2.util)findValue:378, Component (org.apache.struts2.components)evaluateParams:769, UIBean (org.apache.struts2.components)end:510, UIBean (org.apache.struts2.components)doEndTag:42, ComponentTagSupport (org.apache.struts2.views.jsp)_jspx_meth_s_005ftextfield_005f2:18, login_jsp (org.apache.jsp)_jspx_meth_s_005fform_005f0:18, login_jsp (org.apache.jsp)_jspService:14, login_jsp (org.apache.jsp)service:70, HttpJspBase (org.apache.jasper.runtime)service:725, HttpServlet (javax.servlet.http)service:431, JspServletWrapper (org.apache.jasper.servlet)serviceJspFile:396, JspServlet (org.apache.jasper.servlet)service:340, JspServlet (org.apache.jasper.servlet)service:725, HttpServlet (javax.servlet.http)internalDoFilter:291, ApplicationFilterChain (org.apache.catalina.core)doFilter:206, ApplicationFilterChain (org.apache.catalina.core)doFilter:52, WsFilter (org.apache.tomcat.websocket.server)internalDoFilter:239, ApplicationFilterChain (org.apache.catalina.core)doFilter:206, ApplicationFilterChain (org.apache.catalina.core)invoke:721, ApplicationDispatcher (org.apache.catalina.core)processRequest:466, ApplicationDispatcher (org.apache.catalina.core)doForward:391, ApplicationDispatcher (org.apache.catalina.core)forward:318, ApplicationDispatcher (org.apache.catalina.core)doExecute:157, ServletDispatcherResult (org.apache.struts2.dispatcher)execute:186, StrutsResultSupport (org.apache.struts2.dispatcher)executeResult:373, DefaultActionInvocation (com.opensymphony.xwork2)invoke:277, DefaultActionInvocation (com.opensymphony.xwork2)doIntercept:263, ValidationInterceptor (com.opensymphony.xwork2.validator)doIntercept:68, AnnotationValidationInterceptor (org.apache.struts2.interceptor.validation)intercept:98, MethodFilterInterceptor (com.opensymphony.xwork2.interceptor)invoke:248, DefaultActionInvocation (com.opensymphony.xwork2)intercept:133, ConversionErrorInterceptor (com.opensymphony.xwork2.interceptor)invoke:248, DefaultActionInvocation (com.opensymphony.xwork2)doIntercept:207, ParametersInterceptor (com.opensymphony.xwork2.interceptor)intercept:98, MethodFilterInterceptor (com.opensymphony.xwork2.interceptor)invoke:248, DefaultActionInvocation (com.opensymphony.xwork2)doIntercept:207, ParametersInterceptor (com.opensymphony.xwork2.interceptor)intercept:98, MethodFilterInterceptor (com.opensymphony.xwork2.interceptor)invoke:248, DefaultActionInvocation (com.opensymphony.xwork2)intercept:190, StaticParametersInterceptor (com.opensymphony.xwork2.interceptor)invoke:248, DefaultActionInvocation (com.opensymphony.xwork2)intercept:75, MultiselectInterceptor (org.apache.struts2.interceptor)invoke:248, DefaultActionInvocation (com.opensymphony.xwork2)intercept:94, CheckboxInterceptor (org.apache.struts2.interceptor)invoke:248, DefaultActionInvocation (com.opensymphony.xwork2)intercept:243, FileUploadInterceptor (org.apache.struts2.interceptor)invoke:248, DefaultActionInvocation (com.opensymphony.xwork2)intercept:100, ModelDrivenInterceptor (com.opensymphony.xwork2.interceptor)invoke:248, DefaultActionInvocation (com.opensymphony.xwork2)intercept:141, ScopedModelDrivenInterceptor (com.opensymphony.xwork2.interceptor)invoke:248, DefaultActionInvocation (com.opensymphony.xwork2)intercept:270, DebuggingInterceptor (org.apache.struts2.interceptor.debugging)invoke:248, DefaultActionInvocation (com.opensymphony.xwork2)intercept:145, ChainingInterceptor (com.opensymphony.xwork2.interceptor)invoke:248, DefaultActionInvocation (com.opensymphony.xwork2)doIntercept:171, PrepareInterceptor (com.opensymphony.xwork2.interceptor)intercept:98, MethodFilterInterceptor (com.opensymphony.xwork2.interceptor)invoke:248, DefaultActionInvocation (com.opensymphony.xwork2)intercept:176, I18nInterceptor (com.opensymphony.xwork2.interceptor)invoke:248, DefaultActionInvocation (com.opensymphony.xwork2)intercept:164, ServletConfigInterceptor (org.apache.struts2.interceptor)invoke:248, DefaultActionInvocation (com.opensymphony.xwork2)intercept:190, AliasInterceptor (com.opensymphony.xwork2.interceptor)invoke:248, DefaultActionInvocation (com.opensymphony.xwork2)intercept:187, ExceptionMappingInterceptor (com.opensymphony.xwork2.interceptor)invoke:248, DefaultActionInvocation (com.opensymphony.xwork2)execute:52, StrutsActionProxy (org.apache.struts2.impl)serviceAction:498, Dispatcher (org.apache.struts2.dispatcher)doFilter:434, FilterDispatcher (org.apache.struts2.dispatcher)internalDoFilter:239, ApplicationFilterChain (org.apache.catalina.core)doFilter:206, ApplicationFilterChain (org.apache.catalina.core)invoke:219, StandardWrapperValve (org.apache.catalina.core)invoke:106, StandardContextValve (org.apache.catalina.core)invoke:501, AuthenticatorBase (org.apache.catalina.authenticator)invoke:142, StandardHostValve (org.apache.catalina.core)invoke:79, ErrorReportValve (org.apache.catalina.valves)invoke:610, AbstractAccessLogValve (org.apache.catalina.valves)invoke:88, StandardEngineValve (org.apache.catalina.core)service:516, CoyoteAdapter (org.apache.catalina.connector)process:1086, AbstractHttp11Processor (org.apache.coyote.http11)process:659, AbstractProtocol$AbstractConnectionHandler (org.apache.coyote)process:223, Http11NioProtocol$Http11ConnectionHandler (org.apache.coyote.http11)doRun:1558, NioEndpoint$SocketProcessor (org.apache.tomcat.util.net)run:1515, NioEndpoint$SocketProcessor (org.apache.tomcat.util.net)runWorker:1149, ThreadPoolExecutor (java.util.concurrent)run:624, ThreadPoolExecutor$Worker (java.util.concurrent)run:61, TaskThread$WrappingRunnable (org.apache.tomcat.util.threads)run:748, Thread (java.lang)
分析到这里，其实可以发现一个问题，首先网上流传的Payload，也就是’+(#application)+’，这里可以换种容易理解的写法，即' + #{application} + '，这样也许大家会更容易分清楚其中OGNL表达式的部分。
修复方案

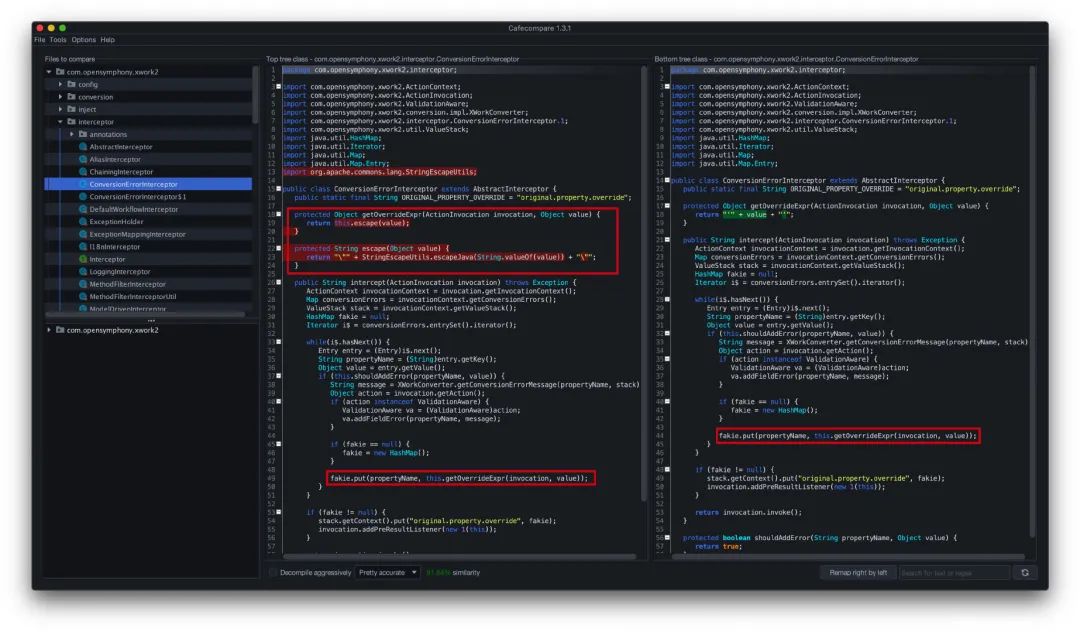

S2-007的修复方式也是十分的简单粗暴，废话不多说，直接看DIFF：
可以发现，修复方式十分粗暴，就是通过StringEscapeUtils.escapeJava对其进行了一个转义，并且将原先左右两侧的单引号换为了双引号，此时我们则没有办法逃逸这左右两侧的引号了，因为"会被转义为\"。
一个小问题
在最开始的时候写了，我测试的时候发现某些低版本用不了，这是因为在某些低版本中把XWorkConverter这个类给去掉了，因此没有上报错误的这么一个流程了，自然也就无法产生后续错误处理时的漏洞。所以如果想稳定复现，最好还是使用2.2.3版本进行复现。
吐槽
在分析这个漏洞时自然是参考了网上的一些文章，比如：
- https://github.com/xhycccc/Struts2-Vuln-Demo/tree/master/s2-007
- https://xz.aliyun.com/t/2684
其中Github中的参考链接是第二个链接，然而实际上第二篇文章的漏洞分析部分有着些许问题，比如这个漏洞压根就不需要编写什么validate.xml，并且实际上触发OGNL表达式的也不是invoke这里，而是后续的调用中。
但这样错误的文章，也还是被抄来抄去的，这里只作吐槽，希望大家复现漏洞时能够在真正了解漏洞之后再去COPY，否则很容易被没复现过这个漏洞的人误解。
