详解七句汇编获取Kernel32模块地址

学习壳的过程中，为了获取了Kernel32的基址的代码，在加密壳的时候直接使用。使用Onlydbg逆向截取到相应代码，当时的我无法理解这些代码。现在的我有所理解，写个解析记录分享一下，代码块如下：

GetKernel32Base proc    assume fs:nothing               ;开始使用fs寄存器    mov eax, dword ptr fs : [30h]   ;指向PEB结构    mov eax, dword ptr[eax + 0Ch]   ;指向LDR Ptr32 _PEB_LDR_DATA    mov eax, dword ptr[eax + 0Ch]   ;指向InLoadOrderModuleList _LIST_ENTRY    mov eax, dword ptr[eax]         ;移动_LIST_ENTRY    mov eax, dword ptr[eax]         ;指向Kernel32    mov eax, dword ptr[eax + 18h]   ;指向DllBase基址    retGetKernelBase endp

1、第一行代码：assume fs:nothing

FS寄存器指向当前活动线程的TEB结构（线程结构）,缺省情况下fs:error表示fs未使用，若要引用fs寄存器，需fs:nothing后，才可使用。

2、第二行代码：mov eax,dword ptr fs:[30h]

我们使用Windbg来观察结构体，辅助我们的理解。

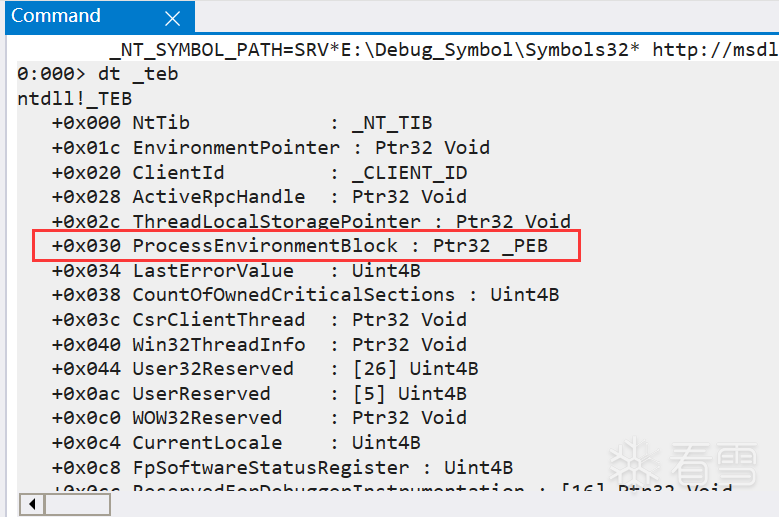

输入 dt _teb

0x30处是：ProcessEnvironmentBlock

类型是：Ptr32 _PEB

指向PEB

附带Teb结构：

0:000> dt _tebntdll!_TEB   +0x000 NtTib            : _NT_TIB   +0x01c EnvironmentPointer : Ptr32 Void   +0x020 ClientId         : _CLIENT_ID   +0x028 ActiveRpcHandle  : Ptr32 Void   +0x02c ThreadLocalStoragePointer : Ptr32 Void   +0x030 ProcessEnvironmentBlock : Ptr32 _PEB   +0x034 LastErrorValue   : Uint4B   +0x038 CountOfOwnedCriticalSections : Uint4B   +0x03c CsrClientThread  : Ptr32 Void   +0x040 Win32ThreadInfo  : Ptr32 Void   +0x044 User32Reserved   : [26] Uint4B   +0x0ac UserReserved     : [5] Uint4B   +0x0c0 WOW32Reserved    : Ptr32 Void   +0x0c4 CurrentLocale    : Uint4B   +0x0c8 FpSoftwareStatusRegister : Uint4B   +0x0cc ReservedForDebuggerInstrumentation : [16] Ptr32 Void   +0x10c SystemReserved1  : [26] Ptr32 Void   +0x174 PlaceholderCompatibilityMode : Char   +0x175 PlaceholderHydrationAlwaysExplicit : UChar   +0x176 PlaceholderReserved : [10] Char   +0x180 ProxiedProcessId : Uint4B   +0x184 _ActivationStack : _ACTIVATION_CONTEXT_STACK   +0x19c WorkingOnBehalfTicket : [8] UChar   +0x1a4 ExceptionCode    : Int4B   +0x1a8 ActivationContextStackPointer : Ptr32 _ACTIVATION_CONTEXT_STACK   +0x1ac InstrumentationCallbackSp : Uint4B   +0x1b0 InstrumentationCallbackPreviousPc : Uint4B   +0x1b4 InstrumentationCallbackPreviousSp : Uint4B   +0x1b8 InstrumentationCallbackDisabled : UChar   +0x1b9 SpareBytes       : [23] UChar   +0x1d0 TxFsContext      : Uint4B   +0x1d4 GdiTebBatch      : _GDI_TEB_BATCH   +0x6b4 RealClientId     : _CLIENT_ID   +0x6bc GdiCachedProcessHandle : Ptr32 Void   +0x6c0 GdiClientPID     : Uint4B   +0x6c4 GdiClientTID     : Uint4B   +0x6c8 GdiThreadLocalInfo : Ptr32 Void   +0x6cc Win32ClientInfo  : [62] Uint4B   +0x7c4 glDispatchTable  : [233] Ptr32 Void   +0xb68 glReserved1      : [29] Uint4B   +0xbdc glReserved2      : Ptr32 Void   +0xbe0 glSectionInfo    : Ptr32 Void   +0xbe4 glSection        : Ptr32 Void   +0xbe8 glTable          : Ptr32 Void   +0xbec glCurrentRC      : Ptr32 Void   +0xbf0 glContext        : Ptr32 Void   +0xbf4 LastStatusValue  : Uint4B   +0xbf8 StaticUnicodeString : _UNICODE_STRING   +0xc00 StaticUnicodeBuffer : [261] Wchar   +0xe0c DeallocationStack : Ptr32 Void   +0xe10 TlsSlots         : [64] Ptr32 Void   +0xf10 TlsLinks         : _LIST_ENTRY   +0xf18 Vdm              : Ptr32 Void   +0xf1c ReservedForNtRpc : Ptr32 Void   +0xf20 DbgSsReserved    : [2] Ptr32 Void   +0xf28 HardErrorMode    : Uint4B   +0xf2c Instrumentation  : [9] Ptr32 Void   +0xf50 ActivityId       : _GUID   +0xf60 SubProcessTag    : Ptr32 Void   +0xf64 PerflibData      : Ptr32 Void   +0xf68 EtwTraceData     : Ptr32 Void   +0xf6c WinSockData      : Ptr32 Void   +0xf70 GdiBatchCount    : Uint4B   +0xf74 CurrentIdealProcessor : _PROCESSOR_NUMBER   +0xf74 IdealProcessorValue : Uint4B   +0xf74 ReservedPad0     : UChar   +0xf75 ReservedPad1     : UChar   +0xf76 ReservedPad2     : UChar   +0xf77 IdealProcessor   : UChar   +0xf78 GuaranteedStackBytes : Uint4B   +0xf7c ReservedForPerf  : Ptr32 Void   +0xf80 ReservedForOle   : Ptr32 Void   +0xf84 WaitingOnLoaderLock : Uint4B   +0xf88 SavedPriorityState : Ptr32 Void   +0xf8c ReservedForCodeCoverage : Uint4B   +0xf90 ThreadPoolData   : Ptr32 Void   +0xf94 TlsExpansionSlots : Ptr32 Ptr32 Void   +0xf98 MuiGeneration    : Uint4B   +0xf9c IsImpersonating  : Uint4B   +0xfa0 NlsCache         : Ptr32 Void   +0xfa4 pShimData        : Ptr32 Void   +0xfa8 HeapData         : Uint4B   +0xfac CurrentTransactionHandle : Ptr32 Void   +0xfb0 ActiveFrame      : Ptr32 _TEB_ACTIVE_FRAME   +0xfb4 FlsData          : Ptr32 Void   +0xfb8 PreferredLanguages : Ptr32 Void   +0xfbc UserPrefLanguages : Ptr32 Void   +0xfc0 MergedPrefLanguages : Ptr32 Void   +0xfc4 MuiImpersonation : Uint4B   +0xfc8 CrossTebFlags    : Uint2B   +0xfc8 SpareCrossTebBits : Pos 0, 16 Bits   +0xfca SameTebFlags     : Uint2B   +0xfca SafeThunkCall    : Pos 0, 1 Bit   +0xfca InDebugPrint     : Pos 1, 1 Bit   +0xfca HasFiberData     : Pos 2, 1 Bit   +0xfca SkipThreadAttach : Pos 3, 1 Bit   +0xfca WerInShipAssertCode : Pos 4, 1 Bit   +0xfca RanProcessInit   : Pos 5, 1 Bit   +0xfca ClonedThread     : Pos 6, 1 Bit   +0xfca SuppressDebugMsg : Pos 7, 1 Bit   +0xfca DisableUserStackWalk : Pos 8, 1 Bit   +0xfca RtlExceptionAttached : Pos 9, 1 Bit   +0xfca InitialThread    : Pos 10, 1 Bit   +0xfca SessionAware     : Pos 11, 1 Bit   +0xfca LoadOwner        : Pos 12, 1 Bit   +0xfca LoaderWorker     : Pos 13, 1 Bit   +0xfca SkipLoaderInit   : Pos 14, 1 Bit   +0xfca SpareSameTebBits : Pos 15, 1 Bit   +0xfcc TxnScopeEnterCallback : Ptr32 Void   +0xfd0 TxnScopeExitCallback : Ptr32 Void   +0xfd4 TxnScopeContext  : Ptr32 Void   +0xfd8 LockCount        : Uint4B   +0xfdc WowTebOffset     : Int4B   +0xfe0 ResourceRetValue : Ptr32 Void   +0xfe4 ReservedForWdf   : Ptr32 Void   +0xfe8 ReservedForCrt   : Uint8B   +0xff0 EffectiveContainerId : _GUID

3、第三行代码：mov eax,dword ptr [eax+0Ch]

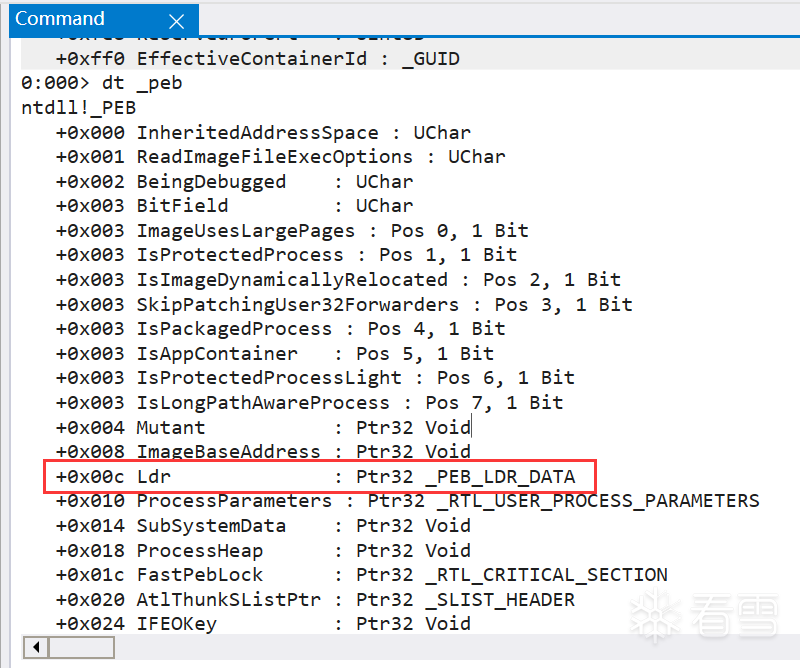

输入 dt _peb

0x0C处是：Ldr

类型是：Ptr32 _PEB_LDR_DATA

附带Peb结构：

0:000> dt _pebntdll!_PEB   +0x000 InheritedAddressSpace : UChar   +0x001 ReadImageFileExecOptions : UChar   +0x002 BeingDebugged    : UChar   +0x003 BitField         : UChar   +0x003 ImageUsesLargePages : Pos 0, 1 Bit   +0x003 IsProtectedProcess : Pos 1, 1 Bit   +0x003 IsImageDynamicallyRelocated : Pos 2, 1 Bit   +0x003 SkipPatchingUser32Forwarders : Pos 3, 1 Bit   +0x003 IsPackagedProcess : Pos 4, 1 Bit   +0x003 IsAppContainer   : Pos 5, 1 Bit   +0x003 IsProtectedProcessLight : Pos 6, 1 Bit   +0x003 IsLongPathAwareProcess : Pos 7, 1 Bit   +0x004 Mutant           : Ptr32 Void   +0x008 ImageBaseAddress : Ptr32 Void   +0x00c Ldr              : Ptr32 _PEB_LDR_DATA   +0x010 ProcessParameters : Ptr32 _RTL_USER_PROCESS_PARAMETERS   +0x014 SubSystemData    : Ptr32 Void   +0x018 ProcessHeap      : Ptr32 Void   +0x01c FastPebLock      : Ptr32 _RTL_CRITICAL_SECTION   +0x020 AtlThunkSListPtr : Ptr32 _SLIST_HEADER   +0x024 IFEOKey          : Ptr32 Void   +0x028 CrossProcessFlags : Uint4B   +0x028 ProcessInJob     : Pos 0, 1 Bit   +0x028 ProcessInitializing : Pos 1, 1 Bit   +0x028 ProcessUsingVEH  : Pos 2, 1 Bit   +0x028 ProcessUsingVCH  : Pos 3, 1 Bit   +0x028 ProcessUsingFTH  : Pos 4, 1 Bit   +0x028 ProcessPreviouslyThrottled : Pos 5, 1 Bit   +0x028 ProcessCurrentlyThrottled : Pos 6, 1 Bit   +0x028 ProcessImagesHotPatched : Pos 7, 1 Bit   +0x028 ReservedBits0    : Pos 8, 24 Bits   +0x02c KernelCallbackTable : Ptr32 Void   +0x02c UserSharedInfoPtr : Ptr32 Void   +0x030 SystemReserved   : Uint4B   +0x034 AtlThunkSListPtr32 : Ptr32 _SLIST_HEADER   +0x038 ApiSetMap        : Ptr32 Void   +0x03c TlsExpansionCounter : Uint4B   +0x040 TlsBitmap        : Ptr32 Void   +0x044 TlsBitmapBits    : [2] Uint4B   +0x04c ReadOnlySharedMemoryBase : Ptr32 Void   +0x050 SharedData       : Ptr32 Void   +0x054 ReadOnlyStaticServerData : Ptr32 Ptr32 Void   +0x058 AnsiCodePageData : Ptr32 Void   +0x05c OemCodePageData  : Ptr32 Void   +0x060 UnicodeCaseTableData : Ptr32 Void   +0x064 NumberOfProcessors : Uint4B   +0x068 NtGlobalFlag     : Uint4B   +0x070 CriticalSectionTimeout : _LARGE_INTEGER   +0x078 HeapSegmentReserve : Uint4B   +0x07c HeapSegmentCommit : Uint4B   +0x080 HeapDeCommitTotalFreeThreshold : Uint4B   +0x084 HeapDeCommitFreeBlockThreshold : Uint4B   +0x088 NumberOfHeaps    : Uint4B   +0x08c MaximumNumberOfHeaps : Uint4B   +0x090 ProcessHeaps     : Ptr32 Ptr32 Void   +0x094 GdiSharedHandleTable : Ptr32 Void   +0x098 ProcessStarterHelper : Ptr32 Void   +0x09c GdiDCAttributeList : Uint4B   +0x0a0 LoaderLock       : Ptr32 _RTL_CRITICAL_SECTION   +0x0a4 OSMajorVersion   : Uint4B   +0x0a8 OSMinorVersion   : Uint4B   +0x0ac OSBuildNumber    : Uint2B   +0x0ae OSCSDVersion     : Uint2B   +0x0b0 OSPlatformId     : Uint4B   +0x0b4 ImageSubsystem   : Uint4B   +0x0b8 ImageSubsystemMajorVersion : Uint4B   +0x0bc ImageSubsystemMinorVersion : Uint4B   +0x0c0 ActiveProcessAffinityMask : Uint4B   +0x0c4 GdiHandleBuffer  : [34] Uint4B   +0x14c PostProcessInitRoutine : Ptr32     void   +0x150 TlsExpansionBitmap : Ptr32 Void   +0x154 TlsExpansionBitmapBits : [32] Uint4B   +0x1d4 SessionId        : Uint4B   +0x1d8 AppCompatFlags   : _ULARGE_INTEGER   +0x1e0 AppCompatFlagsUser : _ULARGE_INTEGER   +0x1e8 pShimData        : Ptr32 Void   +0x1ec AppCompatInfo    : Ptr32 Void   +0x1f0 CSDVersion       : _UNICODE_STRING   +0x1f8 ActivationContextData : Ptr32 _ACTIVATION_CONTEXT_DATA   +0x1fc ProcessAssemblyStorageMap : Ptr32 _ASSEMBLY_STORAGE_MAP   +0x200 SystemDefaultActivationContextData : Ptr32 _ACTIVATION_CONTEXT_DATA   +0x204 SystemAssemblyStorageMap : Ptr32 _ASSEMBLY_STORAGE_MAP   +0x208 MinimumStackCommit : Uint4B   +0x20c SparePointers    : [4] Ptr32 Void   +0x21c SpareUlongs      : [5] Uint4B   +0x230 WerRegistrationData : Ptr32 Void   +0x234 WerShipAssertPtr : Ptr32 Void   +0x238 pUnused          : Ptr32 Void   +0x23c pImageHeaderHash : Ptr32 Void   +0x240 TracingFlags     : Uint4B   +0x240 HeapTracingEnabled : Pos 0, 1 Bit   +0x240 CritSecTracingEnabled : Pos 1, 1 Bit   +0x240 LibLoaderTracingEnabled : Pos 2, 1 Bit   +0x240 SpareTracingBits : Pos 3, 29 Bits   +0x248 CsrServerReadOnlySharedMemoryBase : Uint8B   +0x250 TppWorkerpListLock : Uint4B   +0x254 TppWorkerpList   : _LIST_ENTRY   +0x25c WaitOnAddressHashTable : [128] Ptr32 Void   +0x45c TelemetryCoverageHeader : Ptr32 Void   +0x460 CloudFileFlags   : Uint4B   +0x464 CloudFileDiagFlags : Uint4B   +0x468 PlaceholderCompatibilityMode : Char   +0x469 PlaceholderCompatibilityModeReserved : [7] Char   +0x470 LeapSecondData   : Ptr32 _LEAP_SECOND_DATA   +0x474 LeapSecondFlags  : Uint4B   +0x474 SixtySecondEnabled : Pos 0, 1 Bit   +0x474 Reserved         : Pos 1, 31 Bits   +0x478 NtGlobalFlag2    : Uint4B

4、第四行代码：mov eax, dword ptr [eax+0Ch]

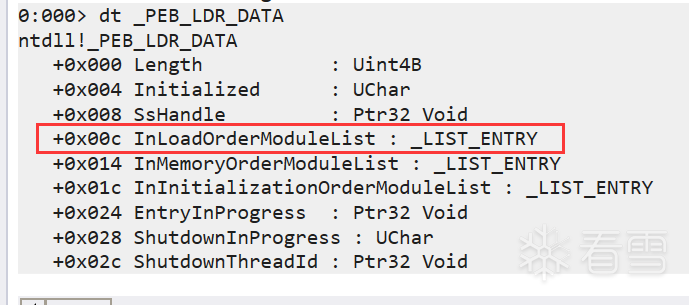

输入 dt _PEB_LDR_DATA

0x0C处是InLoadOrderModuleList

类型是：_LIST_ENTRY

附带_PEB_LDR_DATA结构：

0:000> dt _PEB_LDR_DATAntdll!_PEB_LDR_DATA   +0x000 Length           : Uint4B   +0x004 Initialized      : UChar   +0x008 SsHandle         : Ptr32 Void   +0x00c InLoadOrderModuleList : _LIST_ENTRY   +0x014 InMemoryOrderModuleList : _LIST_ENTRY   +0x01c InInitializationOrderModuleList : _LIST_ENTRY   +0x024 EntryInProgress  : Ptr32 Void   +0x028 ShutdownInProgress : UChar   +0x02c ShutdownThreadId : Ptr32 Void

5、第五、六行代码：mov eax, dword ptr [eax]

输入 dt _LIST_ENTRY

0x00处是：Flink

类型是：Ptr32 _LIST_ENTRY

_LIST_ENTRY结构如下：

0:000> dt _LIST_ENTRYntdll!_LIST_ENTRY   +0x000 Flink            : Ptr32 _LIST_ENTRY   +0x004 Blink            : Ptr32 _LIST_ENTRY

flink：指向前一个_LIST_ENTRY

blink：指向后一个_LIST_ENTRY

可以使用他们遍历所以DLL导入模块

接下来就是要知道Kernel32是在第几块链表中，输入 !peb，可以查看加载顺序，发现是第3项，于是mov eax, dword ptr [eax]执行两次，指针向下移动两次，来到第三块。

Windows的KERNEL32.dll的加载顺序是固定的，于是可以放心这样获取KERNEL32模块基址。

6、第七行代码：mov eax,dword ptr [eax + 18h]

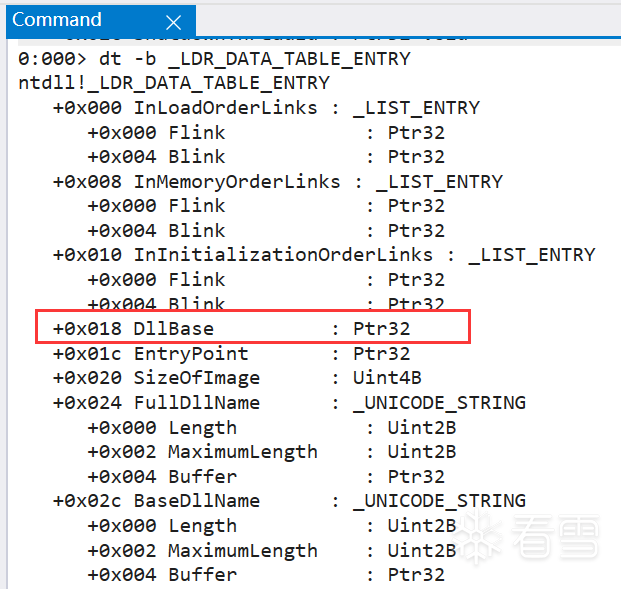

输入命令：dt -b _LDR_DATA_TABLE_ENTRY

可以发现18h的地方是DllBase的基址，正好是我们所需要的

附带_LDR_DATA_TABLE_ENTRY结构：

0:000> dt -b _LDR_DATA_TABLE_ENTRYntdll!_LDR_DATA_TABLE_ENTRY   +0x000 InLoadOrderLinks : _LIST_ENTRY      +0x000 Flink            : Ptr32      +0x004 Blink            : Ptr32   +0x008 InMemoryOrderLinks : _LIST_ENTRY      +0x000 Flink            : Ptr32      +0x004 Blink            : Ptr32   +0x010 InInitializationOrderLinks : _LIST_ENTRY      +0x000 Flink            : Ptr32      +0x004 Blink            : Ptr32   +0x018 DllBase          : Ptr32   +0x01c EntryPoint       : Ptr32   +0x020 SizeOfImage      : Uint4B   +0x024 FullDllName      : _UNICODE_STRING      +0x000 Length           : Uint2B      +0x002 MaximumLength    : Uint2B      +0x004 Buffer           : Ptr32   +0x02c BaseDllName      : _UNICODE_STRING      +0x000 Length           : Uint2B      +0x002 MaximumLength    : Uint2B      +0x004 Buffer           : Ptr32   +0x034 FlagGroup        : UChar   +0x034 Flags            : Uint4B   +0x034 PackagedBinary   : Pos 0, 1 Bit   +0x034 MarkedForRemoval : Pos 1, 1 Bit   +0x034 ImageDll         : Pos 2, 1 Bit   +0x034 LoadNotificationsSent : Pos 3, 1 Bit   +0x034 TelemetryEntryProcessed : Pos 4, 1 Bit   +0x034 ProcessStaticImport : Pos 5, 1 Bit   +0x034 InLegacyLists    : Pos 6, 1 Bit   +0x034 InIndexes        : Pos 7, 1 Bit   +0x034 ShimDll          : Pos 8, 1 Bit   +0x034 InExceptionTable : Pos 9, 1 Bit   +0x034 ReservedFlags1   : Pos 10, 2 Bits   +0x034 LoadInProgress   : Pos 12, 1 Bit   +0x034 LoadConfigProcessed : Pos 13, 1 Bit   +0x034 EntryProcessed   : Pos 14, 1 Bit   +0x034 ProtectDelayLoad : Pos 15, 1 Bit   +0x034 ReservedFlags3   : Pos 16, 2 Bits   +0x034 DontCallForThreads : Pos 18, 1 Bit   +0x034 ProcessAttachCalled : Pos 19, 1 Bit   +0x034 ProcessAttachFailed : Pos 20, 1 Bit   +0x034 CorDeferredValidate : Pos 21, 1 Bit   +0x034 CorImage         : Pos 22, 1 Bit   +0x034 DontRelocate     : Pos 23, 1 Bit   +0x034 CorILOnly        : Pos 24, 1 Bit   +0x034 ChpeImage        : Pos 25, 1 Bit   +0x034 ReservedFlags5   : Pos 26, 2 Bits   +0x034 Redirected       : Pos 28, 1 Bit   +0x034 ReservedFlags6   : Pos 29, 2 Bits   +0x034 CompatDatabaseProcessed : Pos 31, 1 Bit   +0x038 ObsoleteLoadCount : Uint2B   +0x03a TlsIndex         : Uint2B   +0x03c HashLinks        : _LIST_ENTRY      +0x000 Flink            : Ptr32      +0x004 Blink            : Ptr32   +0x044 TimeDateStamp    : Uint4B   +0x048 EntryPointActivationContext : Ptr32   +0x04c Lock             : Ptr32   +0x050 DdagNode         : Ptr32   +0x054 NodeModuleLink   : _LIST_ENTRY      +0x000 Flink            : Ptr32      +0x004 Blink            : Ptr32   +0x05c LoadContext      : Ptr32   +0x060 ParentDllBase    : Ptr32   +0x064 SwitchBackContext : Ptr32   +0x068 BaseAddressIndexNode : _RTL_BALANCED_NODE      +0x000 Children         : Ptr32      +0x000 Left             : Ptr32      +0x004 Right            : Ptr32      +0x008 Red              : Pos 0, 1 Bit      +0x008 Balance          : Pos 0, 2 Bits      +0x008 ParentValue      : Uint4B   +0x074 MappingInfoIndexNode : _RTL_BALANCED_NODE      +0x000 Children         : Ptr32      +0x000 Left             : Ptr32      +0x004 Right            : Ptr32      +0x008 Red              : Pos 0, 1 Bit      +0x008 Balance          : Pos 0, 2 Bits      +0x008 ParentValue      : Uint4B   +0x080 OriginalBase     : Uint4B   +0x088 LoadTime         : _LARGE_INTEGER      +0x000 LowPart          : Uint4B      +0x004 HighPart         : Int4B      +0x000 u                :          +0x000 LowPart          : Uint4B         +0x004 HighPart         : Int4B      +0x000 QuadPart         : Int8B   +0x090 BaseNameHashValue : Uint4B   +0x094 LoadReason       :      LoadReasonStaticDependency = 0n0      LoadReasonStaticForwarderDependency = 0n1      LoadReasonDynamicForwarderDependency = 0n2      LoadReasonDelayloadDependency = 0n3      LoadReasonDynamicLoad = 0n4      LoadReasonAsImageLoad = 0n5      LoadReasonAsDataLoad = 0n6      LoadReasonEnclavePrimary = 0n7      LoadReasonEnclaveDependency = 0n8      LoadReasonUnknown = 0n-1   +0x098 ImplicitPathOptions : Uint4B   +0x09c ReferenceCount   : Uint4B   +0x0a0 DependentLoadFlags : Uint4B   +0x0a4 SigningLevel     : UChar

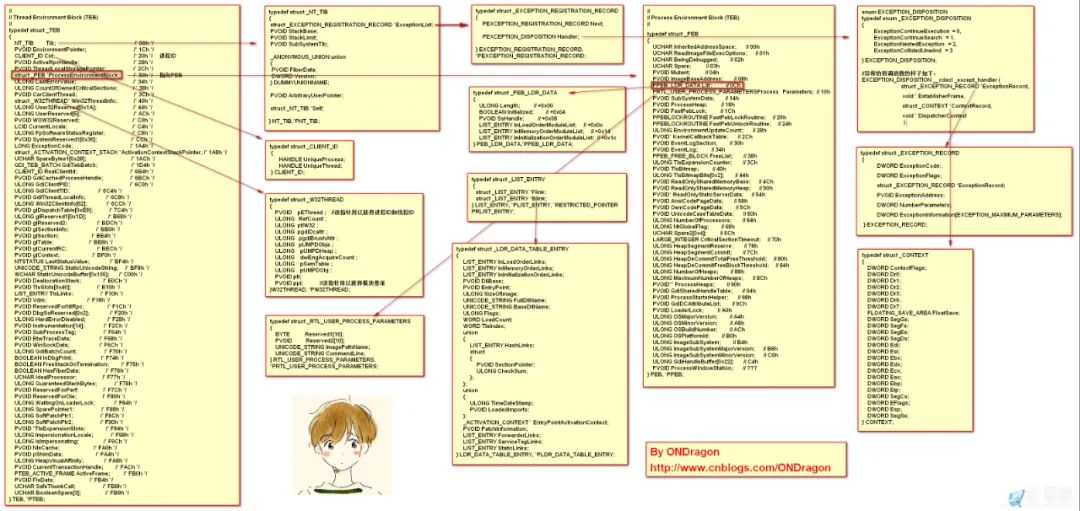

附带找到的PEB、TEB相关结构图一张，方便理解，感谢前辈们的无私贡献，让我们学习更加轻松：
