前言

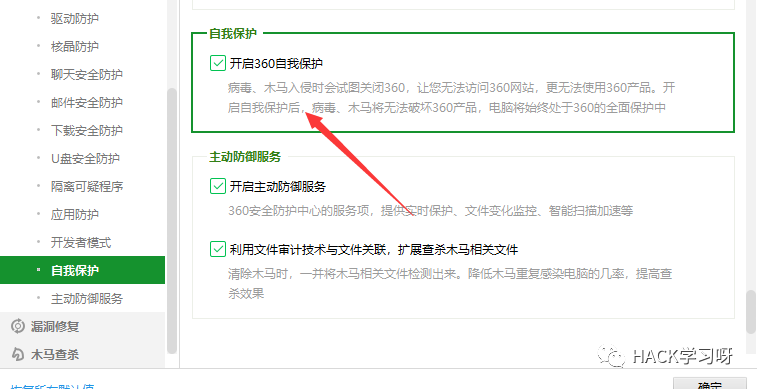

最近在研究某数字杀软的时候看到有个配置选项：

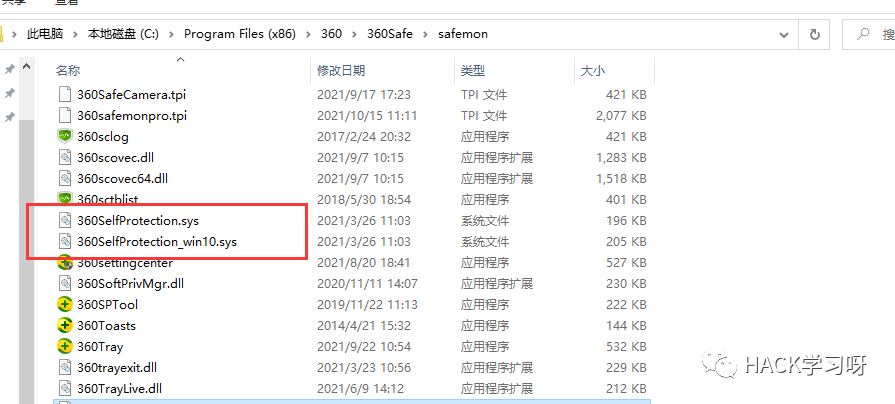

这个自我保护实际上是加载360SelfProtection.sys驱动(看这名字应该还有360SelfProtection_win10.sys文件)，在0环通过hook等手段保护注册表项，重要进程进程等。

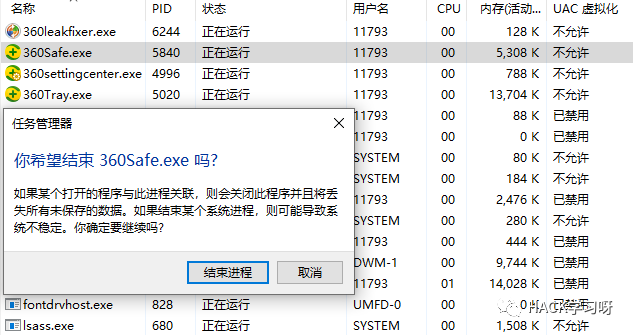

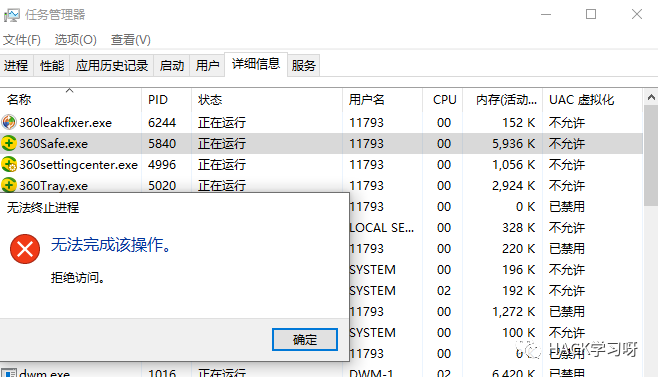

比如这里要结束某核心进程，会显示无法结束，拒绝访问。
这个并不是说权限不够的问题，即便是system权限也不行。而是由于在底层，杀死进程的API已经被hook了，这里应该是内核hook，当想要结束的进程为核心进程时，就直接返回一个无法终止进程的弹窗。本文就如何实现一个进程保护功能进行探究，驱动就不写了，就写一个用户层的。
实现原理
windows提供了一个可以杀死其他进程的API：TerminateProcess。如果是结束本身进程为：ExitProcess。
BOOL TerminateProcess( [in] HANDLE hProcess, [in] UINT uExitCode );
通过命令taskkill或者通过任务管理器等GUI工具去结束进程，本质上都是调用的TerminateProcess，有些可能是调用更为底层的ZwTerminateProcess，但是本质都差不多，只是看该进程用的什么API，这里为了方便就使用TerminateProcess进行演示。
通过hook TerminateProcess让执行该函数时直接返回没有权限。
获取API地址并创建新的hook函数
static BOOL(WINAPI* OldTerminateProcess)(
HANDLE hProcess,
UINT uExitCode) = TerminateProcess;
BOOL WINAPI New_TerminateProcess(
_In_ HANDLE hProcess,
_In_ UINT uExitCode
) {
unhookTerminateProcess();
MessageBox(NULL,L"该进程受保护！", L"Access Denied",NULL);
hookTerminateProcess();
returnfalse;
}
这里是64位的进程，要改变的硬编码是12个字节，而且不需要去算偏移。
48 b8 _dwNewAddress(0x1122334455667788) ff e0 mov rax, _dwNewAddress(0x1122334455667788) jmp rax
将原来函数的调转地址改为我们自己函数的跳转地址
void hookTerminateProcess() {
DWORD dwTerminateProcessOldProtect;
BYTE pData[12] = { 0x48,0xb8,0x0,0x0,0x0,0x0,0x0,0x0,0x0,0x0,0xFF,0xE0};
ULONGLONG ullNewFuncAddr = (ULONGLONG)New_TerminateProcess;
//保存本来的字节
::RtlCopyMemory(g_OldTerminateProcess, OldTerminateProcess, sizeof(pData));
//更改权限
VirtualProtect(OldTerminateProcess, 12, PAGE_EXECUTE_READWRITE, &dwTerminateProcessOldProtect);
//更改原来的机器码，改为我们自己函数的地址
::RtlCopyMemory(&pData[2], &ullNewFuncAddr, sizeof(ullNewFuncAddr));
::RtlCopyMemory(OldTerminateProcess, pData, sizeof(pData));
//恢复属性
VirtualProtect(OldTerminateProcess, 12, dwTerminateProcessOldProtect, &dwTerminateProcessOldProtect);
}
恢复硬编码，还原调转地址。
void unhookTerminateProcess() {
DWORD dwOldProtect = NULL;
//改为可写属性
VirtualProtect(OldTerminateProcess, 12, PAGE_EXECUTE_READWRITE, &dwOldProtect);
//还原原来的硬编码
RtlCopyMemory(OldTerminateProcess, g_OldTerminateProcess, sizeof(g_OldTerminateProcess));
//还原属性
VirtualProtect(OldTerminateProcess, 12, dwOldProtect, &dwOldProtect);
}
最方便的就是写成一个dll，这样注入到任务管理器并起一个线程跑就行了。
BOOL APIENTRY DllMain( HMODULE hModule,
DWORD ul_reason_for_call,
LPVOID lpReserved
)
{
switch(ul_reason_for_call)
{
case DLL_PROCESS_ATTACH:
hookTerminateProcess();
break;
case DLL_THREAD_ATTACH:
break;
case DLL_THREAD_DETACH:
break;
case DLL_PROCESS_DETACH:
unhookTerminateProcess();
break;
}
return TRUE;
}
注入这里也是为了练手，稍微写了一个注入程序，为了以后的方法写成了突破session 0的注入。
#include
#include
#include"tchar.h"
#include
usingnamespace std;
BOOL EnbalePrivileges(HANDLE hProcess, LPCWSTR pszPrivilegesName)
{
HANDLE hToken = NULL;
LUID luidValue = { 0};
TOKEN_PRIVILEGES tokenPrivileges = { 0};
BOOL bRet = FALSE;
DWORD dwRet = 0;
// 打开进程令牌并获取进程令牌句柄
bRet = ::OpenProcessToken(hProcess, TOKEN_ADJUST_PRIVILEGES, &hToken);
if(FALSE == bRet)
{
printf("[!] Open CurrentProcessToken Error,Error is:%d",GetLastError());
return FALSE;
}
else
{
printf("[*] Open CurrentProcessToken Successfully!,TokenHandle is:%d", hToken);
}
// 获取本地系统的 pszPrivilegesName 特权的LUID值
bRet = ::LookupPrivilegeValue(NULL, pszPrivilegesName, &luidValue);
if(FALSE == bRet)
{
printf("[!] LookupPrivilegeValue Error,Error is:%d", GetLastError());
return FALSE;
}
else
{
printf("[*] LookupPrivilegeValue Successfully!");
}
// 设置提升权限信息
tokenPrivileges.PrivilegeCount= 1;
tokenPrivileges.Privileges[0].Luid= luidValue;
tokenPrivileges.Privileges[0].Attributes= SE_PRIVILEGE_ENABLED;
// 提升进程令牌访问权限
bRet = ::AdjustTokenPrivileges(hToken, FALSE, &tokenPrivileges, 0, NULL, NULL);
if(FALSE == bRet)
{
printf("[!] AdjustTokenPrivileges Error,Error is:%d", GetLastError());
return FALSE;
}
else
{
// 根据错误码判断是否特权都设置成功
dwRet = ::GetLastError();
if(ERROR_SUCCESS == dwRet)
{
printf("[√] ALL_ASSIGNED!");
return TRUE;
}
elseif(ERROR_NOT_ALL_ASSIGNED == dwRet)
{
printf("[!] ERROR:NOT_ALL_ASSIGNED,Error is %d", dwRet);
return FALSE;
}
}
return FALSE;
}
DWORD EnumModules(DWORD hPid, LPCSTR hMoudlePath)
{
WCHAR szBuffer[MAX_PATH] = { 0};
mbstowcs(szBuffer, hMoudlePath, MAX_PATH);
//通过pid列出所有的Modules
HANDLE hModuleSnap = INVALID_HANDLE_VALUE;
MODULEENTRY32 me32;
//给进程所引用的模块信息设定一个快照
hModuleSnap = CreateToolhelp32Snapshot(TH32CS_SNAPMODULE, hPid);
if(hModuleSnap == INVALID_HANDLE_VALUE)
{
printf("[!] Error:Enum modules failed to detect if there is an injected DLL module,error is %d",GetLastError());
}
me32.dwSize = sizeof(MODULEENTRY32);
if(!Module32First(hModuleSnap, &me32))
{
printf("[!] Enum Error!");
CloseHandle(hModuleSnap);
}
do
{
if(!memcmp(me32.szExePath, szBuffer,MAX_PATH))
return1;
} while(Module32Next(hModuleSnap, &me32));
CloseHandle(hModuleSnap);
return0;
}
DWORD _InjectThread(DWORD _Pid, LPCSTR psDllPath)
{
FILE* fp;
fp = fopen(psDllPath, "r");
if(!fp)
{
printf("[!] Error:DLL path not foundPlease check that your path is correct or absolute");
return FALSE;
}
fclose(fp);
printf("****************************************************************************");
HANDLE hprocess = NULL;
HANDLE hThread = NULL;
DWORD _SIZE = 0;
LPVOID pAlloc = NULL;
FARPROC pThreadFunction = NULL;
DWORD ZwRet= 0;
hprocess = ::OpenProcess(PROCESS_ALL_ACCESS, FALSE, _Pid);
if(hprocess == NULL)
{
printf("[!] OpenProcess Error,Error is:%d", GetLastError());
return FALSE;
}
else
{
printf("[*] OpenProcess Successfully!");
}
_SIZE = strlen(psDllPath)+1;
pAlloc = ::VirtualAllocEx(hprocess, NULL, _SIZE, MEM_COMMIT, PAGE_READWRITE);
if(pAlloc == NULL)
{
printf("[!] VirtualAllocEx Error,Error is:%d", GetLastError());
return FALSE;
}
else
{
printf("[*] VirtualAllocEx Successfully!");
}
BOOL x = ::WriteProcessMemory(hprocess, pAlloc, psDllPath, _SIZE, NULL);
if(FALSE == x)
{
printf("[!] WriteMemory Error,Error is:%d", GetLastError());
return FALSE;
}
else
{
printf("[*] WriteMemory Successfully!");
}
HMODULE hNtdll = LoadLibrary(L"ntdll.dll");
if(hNtdll == NULL)
{
printf("[!] LoadNTdll Error,Error is:%d", GetLastError());
return FALSE;
}
else
{
printf("[*] Load ntdll.dll Successfully!");
}
pThreadFunction = ::GetProcAddress(::GetModuleHandle(L"kernel32.dll"), "LoadLibraryA");
if(pThreadFunction == NULL)
{
printf("[!] Get LoadLibraryA Address Error,Error is:%d", GetLastError());
return FALSE;
}
else
{
printf("[*] Get LoadLibraryA Address Successfully! Address is %x", pThreadFunction);
}
#ifdef _WIN64
typedef DWORD(WINAPI* typedef_ZwCreateThreadEx)(
PHANDLE ThreadHandle,
ACCESS_MASK DesiredAccess,
LPVOID ObjectAttributes,
HANDLE ProcessHandle,
LPTHREAD_START_ROUTINE lpStartAddress,
LPVOID lpParameter,
ULONG CreateThreadFlags,
SIZE_T ZeroBits,
SIZE_T StackSize,
SIZE_T MaximumStackSize,
LPVOID pUnkown
);
#else
typedef DWORD(WINAPI* typedef_ZwCreateThreadEx)(
PHANDLE ThreadHandle,
ACCESS_MASK DesiredAccess,
LPVOID ObjectAttributes,
HANDLE ProcessHandle,
LPTHREAD_START_ROUTINE lpStartAddress,
LPVOID lpParameter,
BOOL CreateSuspended,
DWORD dwStackSize,
DWORD dw1,
DWORD dw2,
LPVOID pUnkown
);
#endif
typedef_ZwCreateThreadEx ZwCreateThreadEx= NULL;
ZwCreateThreadEx= (typedef_ZwCreateThreadEx)::GetProcAddress(hNtdll, "ZwCreateThreadEx");
if(ZwCreateThreadEx== NULL)
{
printf("[!] Get ZwCreateThreadEx Address Error,Error is:%d", GetLastError());
return FALSE;
}
else
{
printf("[*] Get ZwCreateThreadEx Address Successfully! Address is %x", ZwCreateThreadEx);
}
HANDLE hRemoteThread;
ZwRet= ZwCreateThreadEx(&hRemoteThread, PROCESS_ALL_ACCESS, NULL, hprocess,
(LPTHREAD_START_ROUTINE)pThreadFunction, pAlloc, 0, 0, 0, 0, NULL);
if(hRemoteThread == NULL)
{
printf("[!] Creat RemoteThread Error,Error is:%d", GetLastError());
CloseHandle(hprocess);
return FALSE;
}
printf("[*] Please wait for a moment in the process of injection:");
for(int m = 0;m<5;m++)
{
if(EnumModules(_Pid, psDllPath))
{
printf("[√] Creat RemoteThread Successfully! RemoteThread Id is %x", hRemoteThread);
VirtualFreeEx(hprocess, pAlloc, 0, MEM_RELEASE);
CloseHandle(hRemoteThread);
CloseHandle(hprocess);
FreeLibrary(hNtdll);
return TRUE;
}
Sleep(2000);
}
printf("[!] DLL injection failed!Notice:Please check that your path is absolute or correct");
VirtualFreeEx(hprocess, pAlloc, 0, MEM_RELEASE);
CloseHandle(hRemoteThread);
CloseHandle(hprocess);
FreeLibrary(hNtdll);
return FALSE;
}
int main(int argc, char* argv[])
{
if(argc == 3)
{
EnbalePrivileges(GetCurrentProcess(), SE_DEBUG_NAME);
DWORD dwPid;
sscanf(argv[1],"%d", &dwPid);
_InjectThread(dwPid, argv[2]);
return1;
}
else
{
printf("[!] You passed in the wrong number of parameters!Please pass in two parameters.");
printf("[!] Notice:[!] The first parameter is the PID of the target process[!] The second parameter is the location of the injected DLL,Please enter the absolute path!");
return0;
}
}

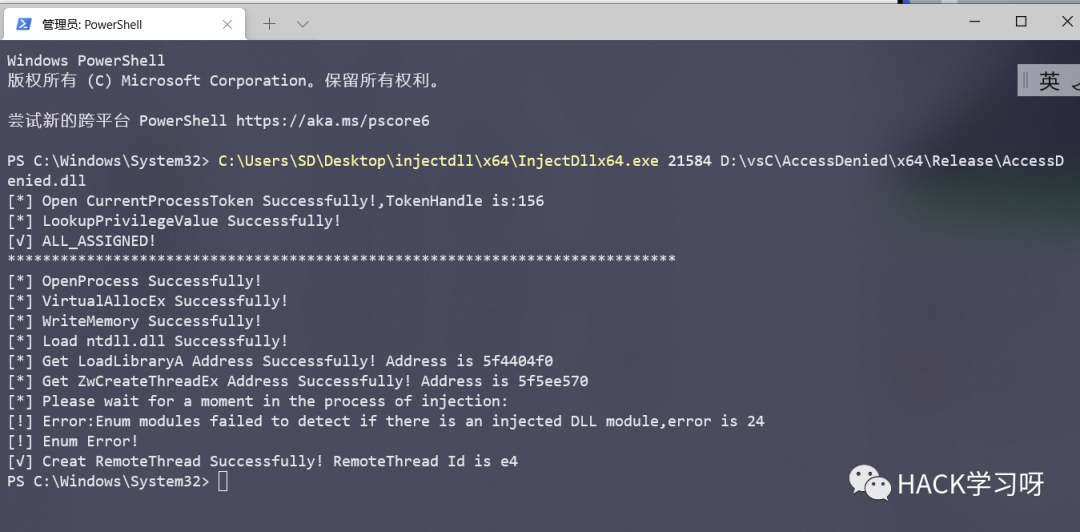

直接注入，看到线程创建成功就表示已经成功了。

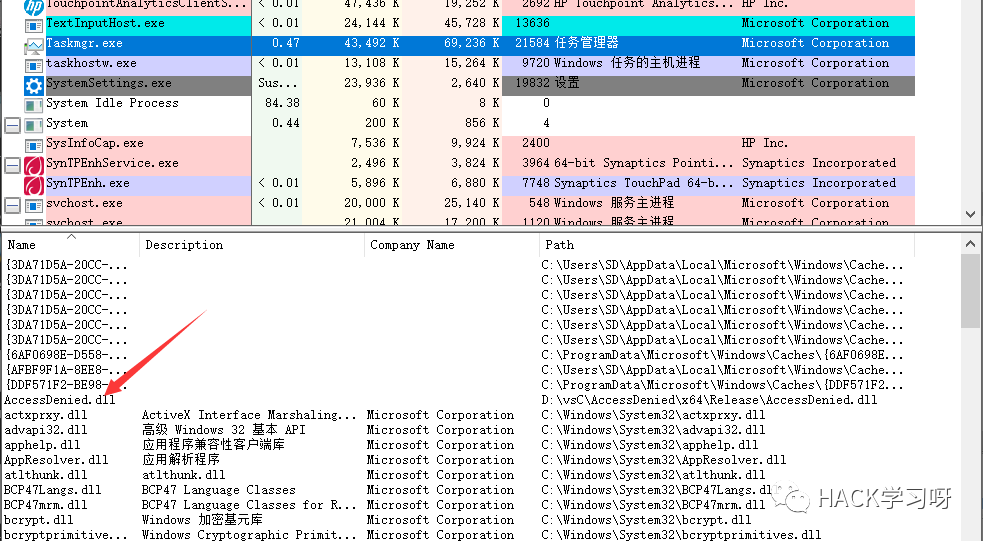

用procexp也可以看一眼。

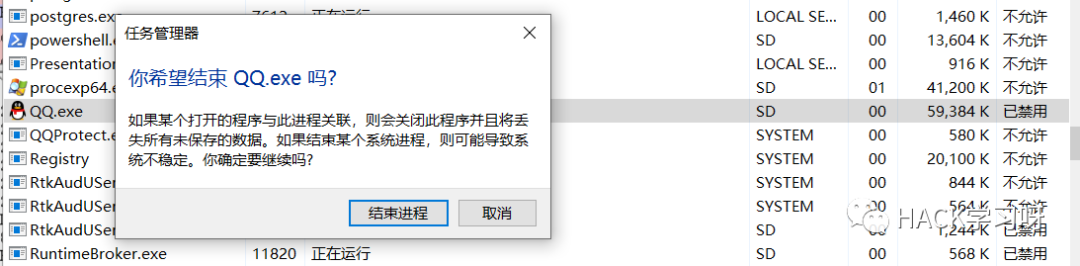

比如现在我们想要结束QQ进程。

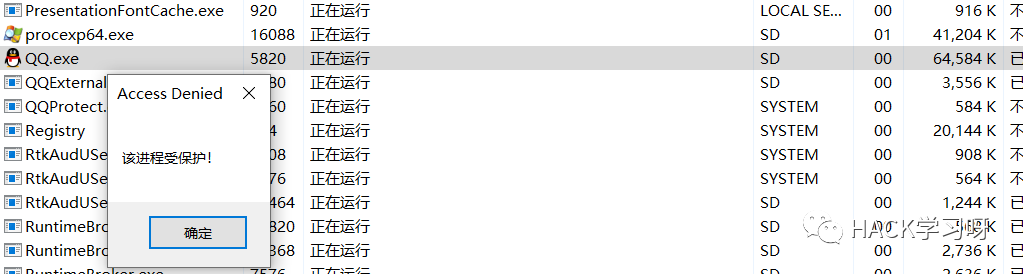

会发现无法结束。
这里由于还没有写判断规则，这个任务管理器目前无法结束任何进程，也就是所有进程都无法结束，这显然用户体验是不好的。
那么如果要选择性保护进程，又应该怎么做呢。注意TerminateProcess的第一个参数，传入的是一个句柄，这个句柄需要从openprocess的返回值获得，所以我们还需要知道打开进程的句柄。
同一进程多次使用openprocess获取的句柄是不一样的。
inline hook的稳定性还是差了点，很容易让进程崩溃。根据实验：任务管理器会不断地调用openprocess这个api，不管有没有操作都会一直调用。这里就用微软更加稳定的detours库。
voidHook()
{
DetourTransactionBegin();
DetourUpdateThread(GetCurrentThread());
// 参数一是原函数地址，参数二是新函数地址
DetourAttach((PVOID*)&OldOpenProcess, New_OpenProcess);
DetourAttach((PVOID*)&OldTerminateProcess, New_TerminateProcess);
DetourTransactionCommit();
}
voidUnHook()
{
DetourTransactionBegin();
DetourUpdateThread(GetCurrentThread());
// 和Hook完全一样，不同的只是将DetourAttach换成DetourDetach
DetourDetach((PVOID*)&OldTerminateProcess, New_TerminateProcess);
DetourDetach((PVOID*)&OldOpenProcess, New_OpenProcess);
DetourTransactionCommit();
}

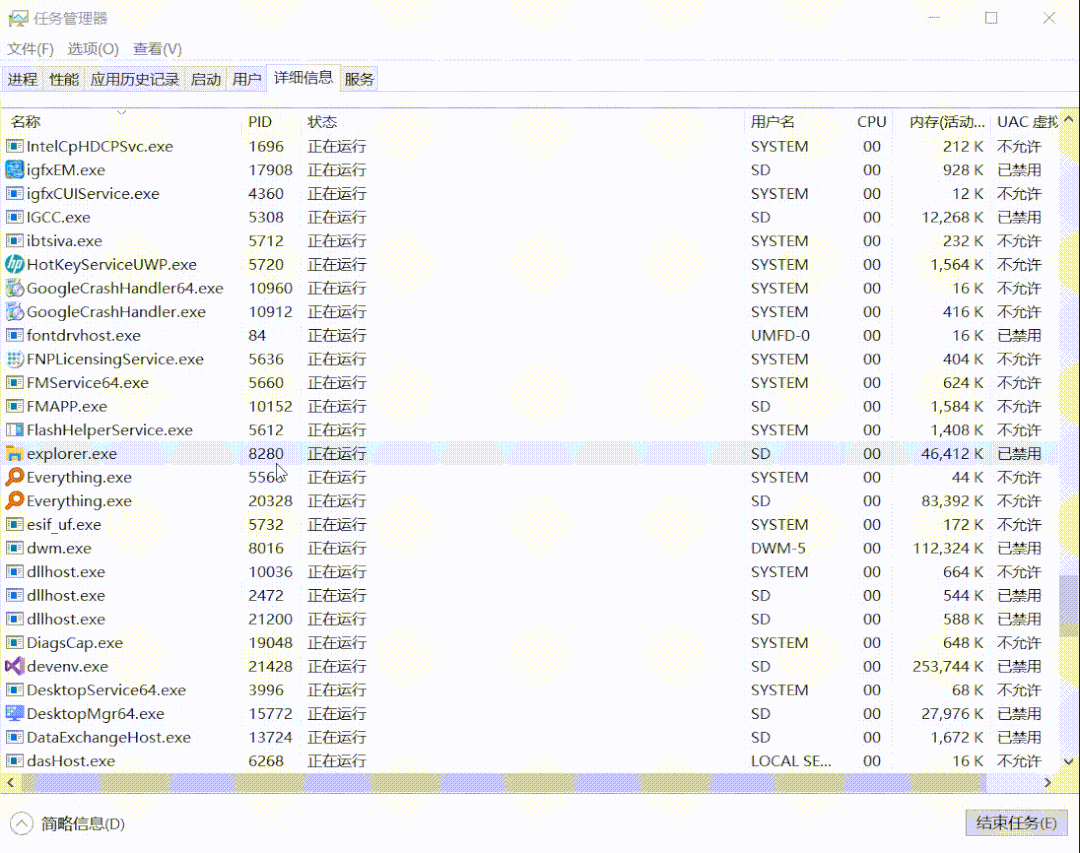

我们自己的函数如下编写，就是做一些简单的判断，比如这里要保护的进程id为5568 ：
HANDLE g_handle = NULL;
HANDLE WINAPI New_OpenProcess(DWORD dwDesiredAccess,BOOL bInheritHandle,DWORD dwProcessId) {
if(dwProcessId == 5568) {
g_handle = OldOpenProcess(dwDesiredAccess, bInheritHandle, dwProcessId);
return g_handle;
}
else
{
HANDLE hHandle = OldOpenProcess(dwDesiredAccess, bInheritHandle, dwProcessId);
return hHandle;
}
}
BOOL WINAPI New_TerminateProcess(
_In_ HANDLE hProcess,
_In_ UINT uExitCode
) {
if(g_handle == hProcess)
{
MessageBox(NULL, L"该进程受保护！", L"Access Denied", NULL);
g_handle = NULL;
returnfalse;
}
else
{
OldTerminateProcess(hProcess, uExitCode);
returntrue;
}
}
