背景
火线某个私密项目中涉及到一个app的测试，打开一看，证书校验--不让抓包，信息加密-无法篡改，遇到这种情况怎么，正常我这种小菜鸡都是直接放弃了，奈何厂家奖金给的高啊，我还是得想办法搞一搞，虽然到最后低危都没有捡到一个，但是还是分享给没有做过app的大佬参考一下。
一、 frida安装
01 Frida概述
Frida是一款轻量级HOOK框架，可用于多平台上，例如android、windows、ios等。
frida分为两部分，服务端运行在目标机上，通过注入进程的方式来实现劫持应用函数，另一部分运行在系统机器上。
frida上层接口支持js、python、c等。
Frida官方github地址为：
https://github.com/frida
02 Frida安装
1 、安装python3.7并配置好环境变量（官方推荐python3以上版本至少为3.7），python安装包官方下载地址：
https://www.python.org/downloads/

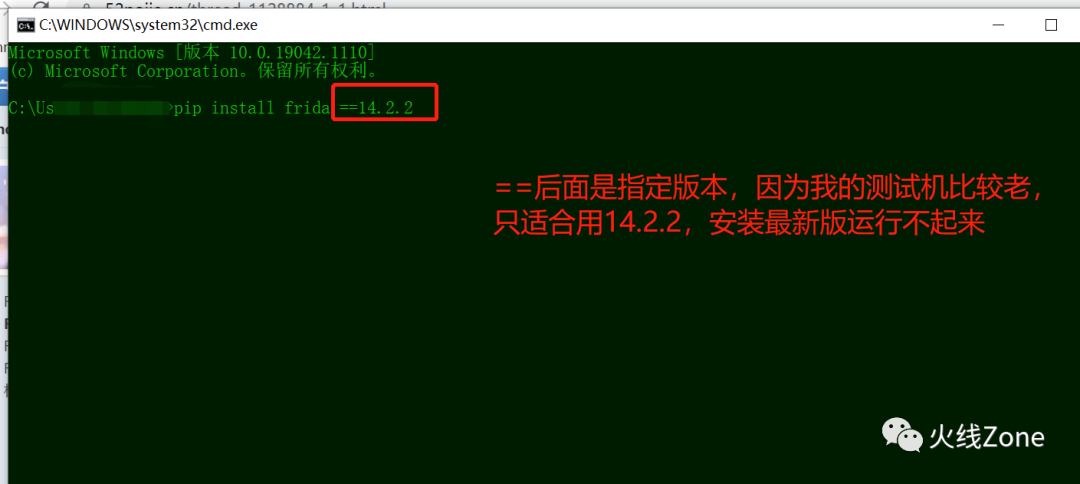

2 、安装frida模块，命令为pip install frida(配置了多个python版本环境的可以使用命令python -m pip install frida防止用pip install frida命令报错)。

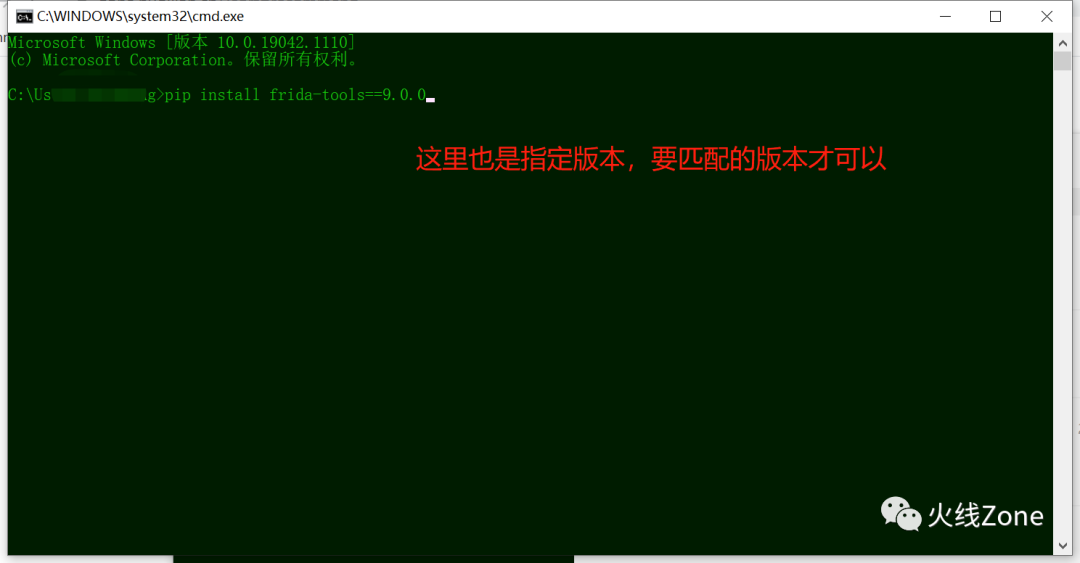

3、安装frida-tools模块，命令同上，pip install frida-tools或者python -m pip install frida-tools。
4、下载运行在目标机上的frida-sever端

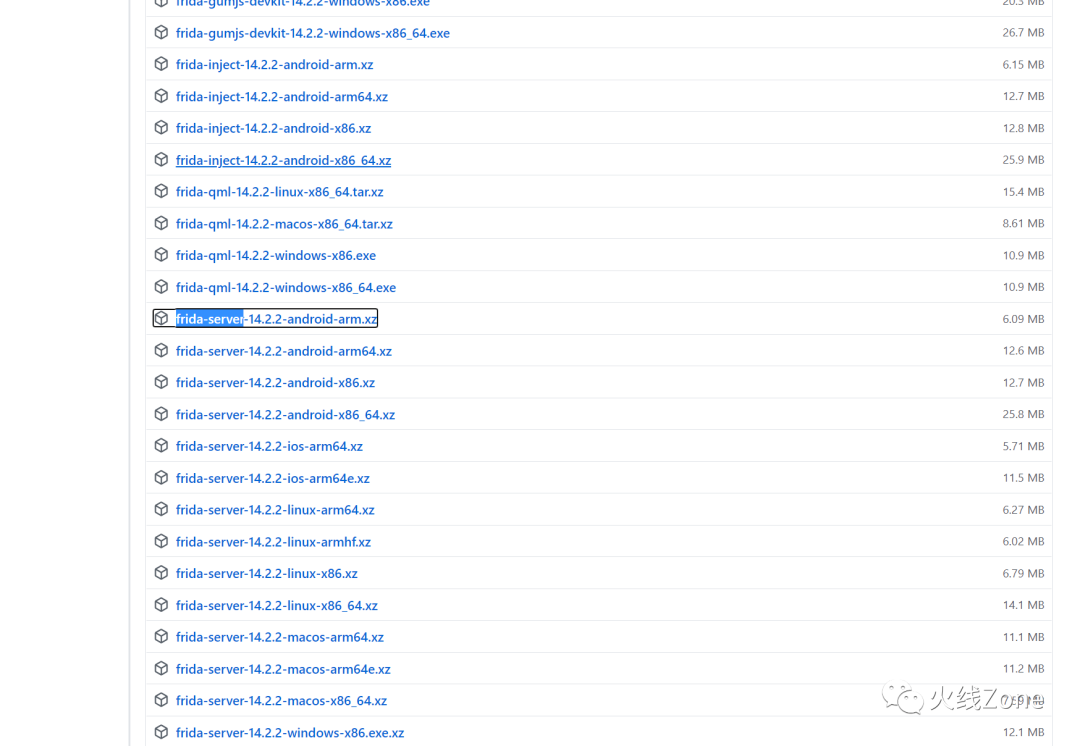

官方下载地址：https://github.com/frida/frida/releases后面可以跟版本14.2.2
下载时要选择对应的版本下载，例如我的机器为arm32为架构，就选择frida-server-14.2.2-android-arm.xz下载。（可以在adb使用命令cat /proc/cpuinfo查询）

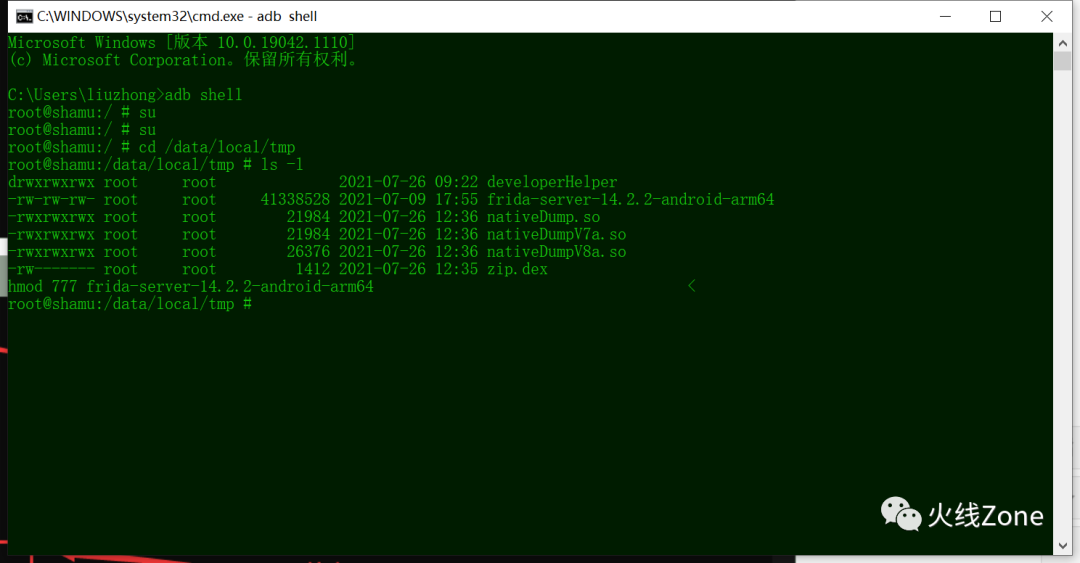

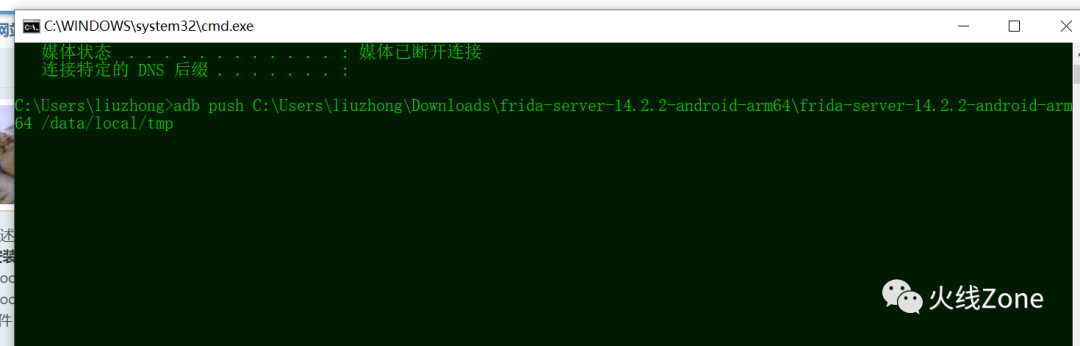

5、将第四步下载好的文件解压，然后通过命令adb push 你的电脑是存放位置 /data/local/tmp将文件传输到手机中，然后通过adb shell进入手机端，给文件赋权777，并于root权限启动。

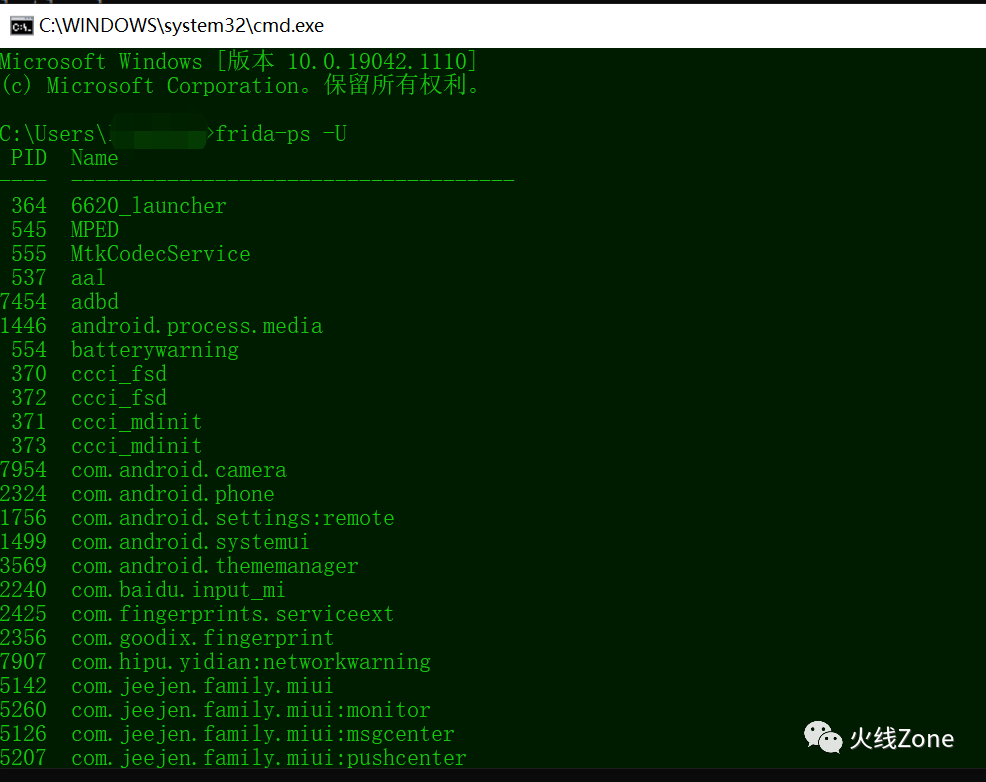

6、做完以上几步后，新开一个命令行输入命令frida-ps -U查看手机进程，如果出现以下结果，则frida安装成功。
可以看到进程了
二、使用Frida脚本绕过抓包限制
设置burp证书
先在burp里设置本机代理
访问代理地址并下载burp证书
将下载的burp证书导入到手机中/data/local/tmp目录下，并重命名为cert-der.crt（此名称在接下来的fridascript.js脚本中使用，如果该名字命名为其他则脚本中相对应的地方也需要进行替换）
adb push cacert.der /data/local/tmp/cert-der.crt
模拟器设置代理，在安卓手机设置->wlan选择对应网络设置代理
打开你想抓包的软件，使用frida-ps -U命令列出设备上运行的服务，找到对应的包名
在本地新建一个js文件，并将一下内容写入
/* Android SSL Re-pinning frida script v0.2 030417-pier
$ adb push burpca-cert-der.crt /data/local/tmp/cert-der.crt $ frida -U -f it.app.mobile -l frida-android-repinning.js --no-pause
https://techblog.mediaservice.net/2017/07/universal-android-ssl-pinning-bypass-with-frida/ UPDATE 20191605: Fixed undeclared var. Thanks to @oleavr and @ehsanpc9999 !*/
setTimeout(function(){ Java.perform(function (){ console.log(""); console.log("[.] Cert Pinning Bypass/Re-Pinning");
var CertificateFactory = Java.use("java.security.cert.CertificateFactory"); var FileInputStream = Java.use("java.io.FileInputStream"); var BufferedInputStream = Java.use("java.io.BufferedInputStream"); var X509Certificate = Java.use("java.security.cert.X509Certificate"); var KeyStore = Java.use("java.security.KeyStore"); var TrustManagerFactory = Java.use("javax.net.ssl.TrustManagerFactory"); var SSLContext = Java.use("javax.net.ssl.SSLContext");
// Load CAs from an InputStream console.log("[+] Loading our CA...") var cf = CertificateFactory.getInstance("X.509"); try { var fileInputStream = FileInputStream.$new("/data/local/tmp/cert-der.crt"); } catch(err) { console.log("[o] " + err); } var bufferedInputStream = BufferedInputStream.$new(fileInputStream); var ca = cf.generateCertificate(bufferedInputStream); bufferedInputStream.close();
var certInfo = Java.cast(ca, X509Certificate); console.log("[o] Our CA Info: " + certInfo.getSubjectDN());
// Create a KeyStore containing our trusted CAs console.log("[+] Creating a KeyStore for our CA..."); var keyStoreType = KeyStore.getDefaultType(); var keyStore = KeyStore.getInstance(keyStoreType); keyStore.load(null, null); keyStore.setCertificateEntry("ca", ca); // Create a TrustManager that trusts the CAs in our KeyStore console.log("[+] Creating a TrustManager that trusts the CA in our KeyStore..."); var tmfAlgorithm = TrustManagerFactory.getDefaultAlgorithm(); var tmf = TrustManagerFactory.getInstance(tmfAlgorithm); tmf.init(keyStore); console.log("[+] Our TrustManager is ready...");
console.log("[+] Hijacking SSLContext methods now...") console.log("[-] Waiting for the app to invoke SSLContext.init()...")
SSLContext.init.overload("[Ljavax.net.ssl.KeyManager;", "[Ljavax.net.ssl.TrustManager;", "java.security.SecureRandom").implementation = function(a,b,c) { console.log("[o] App invoked javax.net.ssl.SSLContext.init..."); SSLContext.init.overload("[Ljavax.net.ssl.KeyManager;", "[Ljavax.net.ssl.TrustManager;", "java.security.SecureRandom").call(this, a, tmf.getTrustManagers(), c); console.log("[+] SSLContext initialized with our custom TrustManager!"); } });},0);
脚本里的30行其中对应的就是burp证书的信息
将fridascript.js注入到目标应用程序中
frida -U -f com.xxxx.app.ui -l C:\Users\xxx\Desktop\fridascript.js --no-pause

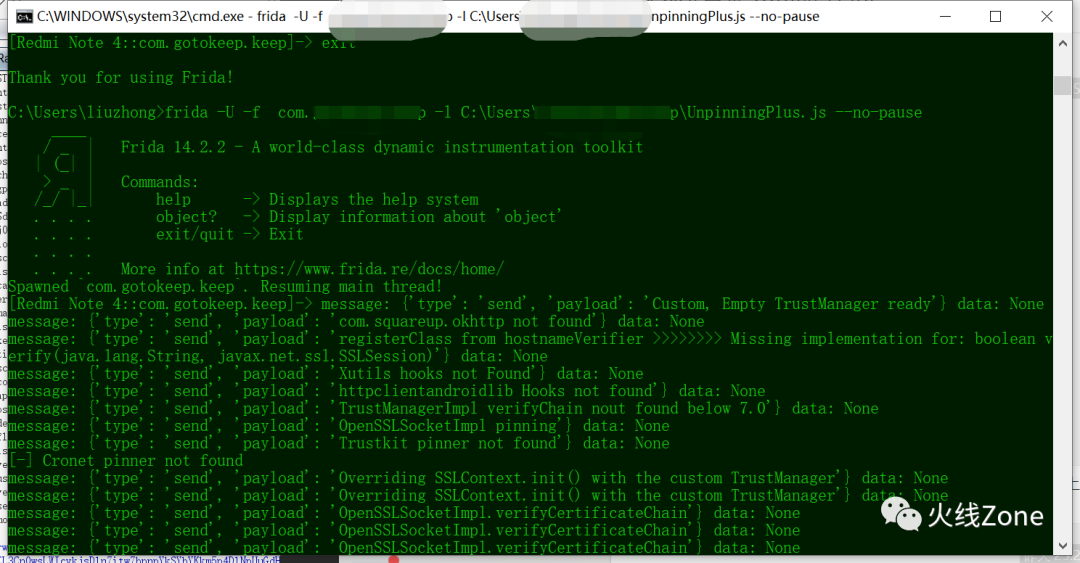

-f选项表示强制启动一个应用程序，-l选项表示加载指定脚本，–no-pause选项表示不中断应用程序的启动，如下所示代表运行成功

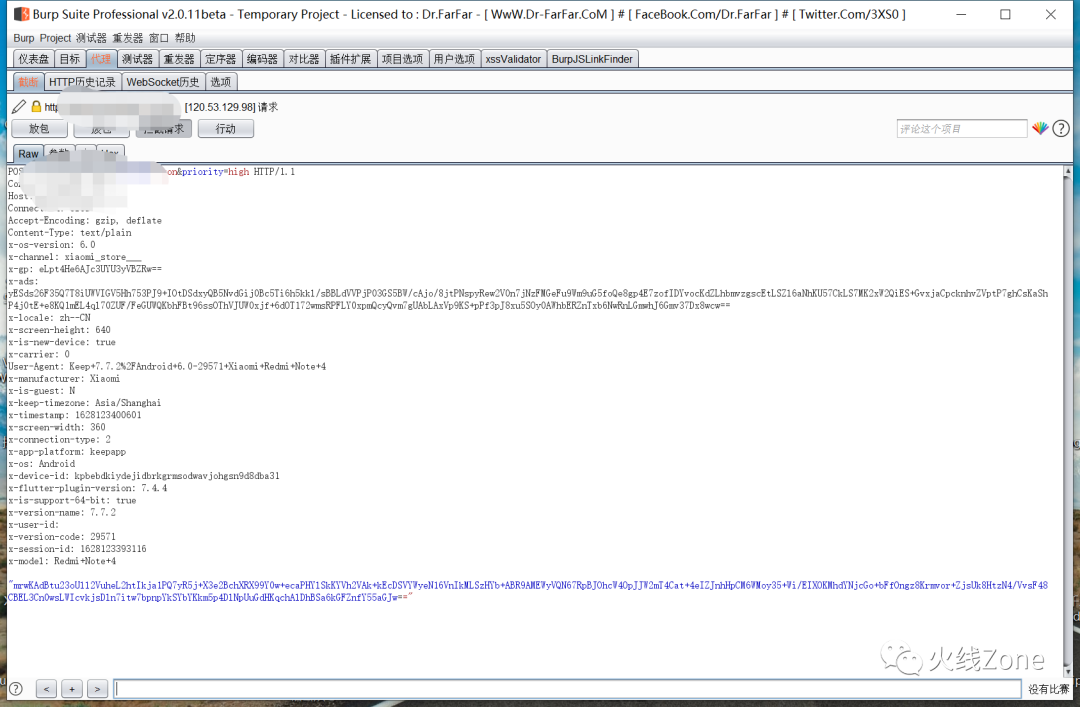

咱们可以看到，已经能抓到包了
但是包的内容进行了加密
三、使用Frida脚本让他自己吐出密钥信息
还需要再本地建一个新的js文件，代码如下：
var N_ENCRYPT_MODE = 1var N_DECRYPT_MODE = 2
function showStacks() { var Exception = Java.use("java.lang.Exception"); var ins = Exception.$new("Exception"); var straces = ins.getStackTrace();
if (undefined == straces || null == straces) { return; }
console.log("============================= Stack strat======================="); console.log("");
for (var i = 0; i < straces.length; i++) { var str = " " + straces[i].toString(); console.log(str); }
console.log(""); console.log("============================= Stack end=======================\r"); Exception.$dispose();}
//工具相关函数 var base64EncodeChars = 'ABCDEFGHIJKLMNOPQRSTUVWXYZabcdefghijklmnopqrstuvwxyz0123456789+/', base64DecodeChars = new Array((-1), (-1), (-1), (-1), (-1), (-1), (-1), (-1), (-1), (-1), (-1), (-1), (-1), (-1), (-1), (-1), (-1), (-1), (-1), (-1), (-1), (-1), (-1), (-1), (-1), (-1), (-1), (-1), (-1), (-1), (-1), (-1), (-1), (-1), (-1), (-1), (-1), (-1), (-1), (-1), (-1), (-1), (-1), 62, (-1), (-1), (-1), 63, 52, 53, 54, 55, 56, 57, 58, 59, 60, 61, (-1), (-1), (-1), (-1), (-1), (-1), (-1), 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, (-1), (-1), (-1), (-1), (-1), (-1), 26, 27, 28, 29, 30, 31, 32, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 45, 46, 47, 48, 49, 50, 51, (-1), (-1), (-1), (-1), (-1));
function stringToBase64(e) { var r, a, c, h, o, t; for (c = e.length, a = 0, r = ''; a < c;) { if (h = 255 & e.charCodeAt(a++), a == c) { r += base64EncodeChars.charAt(h >> 2), r += base64EncodeChars.charAt((3 & h) << 4), r += '=='; break } if (o = e.charCodeAt(a++), a == c) { r += base64EncodeChars.charAt(h >> 2), r += base64EncodeChars.charAt((3 & h) << 4 | (240 & o) >> 4), r += base64EncodeChars.charAt((15 & o) << 2), r += '='; break } t = e.charCodeAt(a++), r += base64EncodeChars.charAt(h >> 2), r += base64EncodeChars.charAt((3 & h) << 4 | (240 & o) >> 4), r += base64EncodeChars.charAt((15 & o) << 2 | (192 & t) >> 6), r += base64EncodeChars.charAt(63 & t) } return r}function base64ToString(e) { var r, a, c, h, o, t, d; for (t = e.length, o = 0, d = ''; o < t;) { do r = base64DecodeChars[255 & e.charCodeAt(o++)]; while (o < t && r == -1); if (r == -1) break; do a = base64DecodeChars[255 & e.charCodeAt(o++)]; while (o < t && a == -1); if (a == -1) break; d += String.fromCharCode(r << 2 | (48 & a) >> 4); do { if (c = 255 & e.charCodeAt(o++), 61 == c) return d; c = base64DecodeChars[c] } while (o < t && c == -1); if (c == -1) break; d += String.fromCharCode((15 & a) << 4 | (60 & c) >> 2); do { if (h = 255 & e.charCodeAt(o++), 61 == h) return d; h = base64DecodeChars[h] } while (o < t && h == -1); if (h == -1) break; d += String.fromCharCode((3 & c) << 6 | h) } return d}function hexToBase64(str) { return base64Encode(String.fromCharCode.apply(null, str.replace(/\r|/g, "").replace(/([\da-fA-F]{2}) ?/g, "0x$1 ").replace(/ +$/, "").split(" ")));}function base64ToHex(str) { for (var i = 0, bin = base64Decode(str.replace(/[ \r]+$/, "")), hex = []; i < bin.length; ++i) { var tmp = bin.charCodeAt(i).toString(16); if (tmp.length === 1) tmp = "0" + tmp; hex[hex.length] = tmp; } return hex.join("");}function hexToBytes(str) { var pos = 0; var len = str.length; if (len % 2 != 0) { return null; } len /= 2; var hexA = new Array(); for (var i = 0; i < len; i++) { var s = str.substr(pos, 2); var v = parseInt(s, 16); hexA.push(v); pos += 2; } return hexA;}function bytesToHex(arr) { var str = ''; var k, j; for (var i = 0; i < arr.length; i++) { k = arr[i]; j = k; if (k < 0) { j = k + 256; } if (j < 16) { str += "0"; } str += j.toString(16); } return str;}function stringToHex(str) { var val = ""; for (var i = 0; i < str.length; i++) { if (val == "") val = str.charCodeAt(i).toString(16); else val += str.charCodeAt(i).toString(16); } return val}function stringToBytes(str) { var ch, st, re = []; for (var i = 0; i < str.length; i++) { ch = str.charCodeAt(i); st = []; do { st.push(ch & 0xFF); ch = ch >> 8; } while (ch); re = re.concat(st.reverse()); } return re;}//将byte[]转成String的方法function bytesToString(arr) { var str = ''; arr = new Uint8Array(arr); for (var i in arr) { str += String.fromCharCode(arr[i]); } return str;}function bytesToBase64(e) { var r, a, c, h, o, t; for (c = e.length, a = 0, r = ''; a < c;) { if (h = 255 & e[a++], a == c) { r += base64EncodeChars.charAt(h >> 2), r += base64EncodeChars.charAt((3 & h) << 4), r += '=='; break } if (o = e[a++], a == c) { r += base64EncodeChars.charAt(h >> 2), r += base64EncodeChars.charAt((3 & h) << 4 | (240 & o) >> 4), r += base64EncodeChars.charAt((15 & o) << 2), r += '='; break } t = e[a++], r += base64EncodeChars.charAt(h >> 2), r += base64EncodeChars.charAt((3 & h) << 4 | (240 & o) >> 4), r += base64EncodeChars.charAt((15 & o) << 2 | (192 & t) >> 6), r += base64EncodeChars.charAt(63 & t) } return r}function base64ToBytes(e) { var r, a, c, h, o, t, d; for (t = e.length, o = 0, d = []; o < t;) { do r = base64DecodeChars[255 & e.charCodeAt(o++)]; while (o < t && r == -1); if (r == -1) break; do a = base64DecodeChars[255 & e.charCodeAt(o++)]; while (o < t && a == -1); if (a == -1) break; d.push(r << 2 | (48 & a) >> 4); do { if (c = 255 & e.charCodeAt(o++), 61 == c) return d; c = base64DecodeChars[c] } while (o < t && c == -1); if (c == -1) break; d.push((15 & a) << 4 | (60 & c) >> 2); do { if (h = 255 & e.charCodeAt(o++), 61 == h) return d; h = base64DecodeChars[h] } while (o < t && h == -1); if (h == -1) break; d.push((3 & c) << 6 | h) } return d}//stringToBase64 stringToHex stringToBytes//base64ToString base64ToHex base64ToBytes// hexToBase64 hexToBytes // bytesToBase64 bytesToHex bytesToString
Java.perform(function () { var secretKeySpec = Java.use('javax.crypto.spec.SecretKeySpec'); secretKeySpec.$init.overload('[B', 'java.lang.String').implementation = function (a, b) { showStacks(); var result = this.$init(a, b); console.log("======================================"); console.log("算法名：" + b + "|str密钥:" + bytesToString(a)); console.log("算法名：" + b + "|Hex密钥:" + bytesToHex(a)); return result; }
var DESKeySpec = Java.use('javax.crypto.spec.DESKeySpec'); DESKeySpec.$init.overload('[B').implementation = function (a) { showStacks(); var result = this.$init(a); console.log("======================================"); var bytes_key_des = this.getKey(); console.log("des密钥 |str " + bytesToString(bytes_key_des)); console.log("des密钥 |hex " + bytesToHex(bytes_key_des)); return result; }
DESKeySpec.$init.overload('[B', 'int').implementation = function (a, b) { showStacks(); var result = this.$init(a, b); console.log("======================================"); var bytes_key_des = this.getKey(); console.log("des密钥 |str " + bytesToString(bytes_key_des)); console.log("des密钥 |hex " + bytesToHex(bytes_key_des)); return result; }
var mac = Java.use('javax.crypto.Mac'); mac.getInstance.overload('java.lang.String').implementation = function (a) { showStacks(); var result = this.getInstance(a); console.log("======================================"); console.log("算法名：" + a); return result; } mac.update.overload('[B').implementation = function (a) { //showStacks(); this.update(a); console.log("======================================"); console.log("update:" + bytesToString(a)) } mac.update.overload('[B', 'int', 'int').implementation = function (a, b, c) { //showStacks(); this.update(a, b, c) console.log("======================================"); console.log("update:" + bytesToString(a) + "|" + b + "|" + c); } mac.doFinal.overload().implementation = function () { //showStacks(); var result = this.doFinal(); console.log("======================================"); console.log("doFinal结果: |str :" + bytesToString(result)); console.log("doFinal结果: |hex :" + bytesToHex(result)); console.log("doFinal结果: |base64 :" + bytesToBase64(result)); return result; } mac.doFinal.overload('[B').implementation = function (a) { //showStacks(); var result = this.doFinal(a); console.log("======================================"); console.log("doFinal参数: |str :" + bytesToString(a)); console.log("doFinal参数: |hex :" + bytesToHex(a)); console.log("doFinal结果: |str :" + bytesToString(result)); console.log("doFinal结果: |hex :" + bytesToHex(result)); console.log("doFinal结果: |base64 :" + bytesToBase64(result)); return result; }
var md = Java.use('java.security.MessageDigest'); md.getInstance.overload('java.lang.String', 'java.lang.String').implementation = function (a, b) { //showStacks(); console.log("======================================"); console.log("算法名：" + a); return this.getInstance(a, b); } md.getInstance.overload('java.lang.String').implementation = function (a) { //showStacks(); console.log("======================================"); console.log("算法名：" + a); return this.getInstance(a); } md.update.overload('[B').implementation = function (a) { //showStacks(); console.log("======================================"); console.log("update:" + bytesToString(a)) return this.update(a); } md.update.overload('[B', 'int', 'int').implementation = function (a, b, c) { //showStacks(); console.log("======================================"); console.log("update:" + bytesToString(a) + "|" + b + "|" + c); return this.update(a, b, c); } md.digest.overload().implementation = function () { //showStacks(); console.log("======================================"); var result = this.digest(); console.log("digest结果 |hex:" + bytesToHex(result)); console.log("digest结果 |base64:" + bytesToBase64(result)); return result; } md.digest.overload('[B').implementation = function (a) { //showStacks(); console.log("======================================"); console.log("digest参数 |str:" + bytesToString(a)); console.log("digest参数 |hex:" + bytesToHex(a)); var result = this.digest(a); console.log("digest结果: |hex" + bytesToHex(result)); console.log("digest结果: |base64" + bytesToBase64(result)); return result; }
var ivParameterSpec = Java.use('javax.crypto.spec.IvParameterSpec'); ivParameterSpec.$init.overload('[B').implementation = function (a) { //showStacks(); var result = this.$init(a); console.log("======================================"); console.log("iv向量: |str:" + bytesToString(a)); console.log("iv向量: |hex:" + bytesToHex(a)); return result; }
var cipher = Java.use('javax.crypto.Cipher'); cipher.getInstance.overload('java.lang.String').implementation = function (a) { //showStacks(); var result = this.getInstance(a); console.log("======================================"); console.log("模式填充:" + a); return result; } cipher.init.overload('int', 'java.security.Key').implementation = function (a, b) { //showStacks(); var result = this.init(a, b); console.log("======================================"); if (N_ENCRYPT_MODE == a) { console.log("init | 加密模式"); } else if(N_DECRYPT_MODE == a) { console.log("init | 解密模式"); }
var bytes_key = b.getEncoded(); console.log("init key:" + "|str密钥:" + bytesToString(bytes_key)); console.log("init key:" + "|Hex密钥:" + bytesToHex(bytes_key)); return result; } cipher.init.overload('int', 'java.security.cert.Certificate').implementation = function (a, b) { //showStacks(); var result = this.init(a, b); console.log("======================================"); if (N_ENCRYPT_MODE == a) { console.log("init | 加密模式"); } else if(N_DECRYPT_MODE == a) { console.log("init | 解密模式"); }
return result; } cipher.init.overload('int', 'java.security.Key', 'java.security.spec.AlgorithmParameterSpec').implementation = function (a, b, c) { //showStacks(); var result = this.init(a, b, c); console.log("======================================"); if (N_ENCRYPT_MODE == a) { console.log("init | 加密模式"); } else if(N_DECRYPT_MODE == a) { console.log("init | 解密模式"); } var bytes_key = b.getEncoded(); console.log("init key:" + "|str密钥:" + bytesToString(bytes_key)); console.log("init key:" + "|Hex密钥:" + bytesToHex(bytes_key));
return result; } cipher.init.overload('int', 'java.security.cert.Certificate', 'java.security.SecureRandom').implementation = function (a, b, c) { //showStacks(); var result = this.init(a, b, c); if (N_ENCRYPT_MODE == a) { console.log("init | 加密模式"); } else if(N_DECRYPT_MODE == a) { console.log("init | 解密模式"); } return result; } cipher.init.overload('int', 'java.security.Key', 'java.security.SecureRandom').implementation = function (a, b, c) { //showStacks(); var result = this.init(a, b, c); if (N_ENCRYPT_MODE == a) { console.log("init | 加密模式"); } else if(N_DECRYPT_MODE == a) { console.log("init | 解密模式"); }
var bytes_key = b.getEncoded(); console.log("init key:" + "|str密钥:" + bytesToString(bytes_key)); console.log("init key:" + "|Hex密钥:" + bytesToHex(bytes_key)); return result; } cipher.init.overload('int', 'java.security.Key', 'java.security.AlgorithmParameters').implementation = function (a, b, c) { //showStacks(); var result = this.init(a, b, c); if (N_ENCRYPT_MODE == a) { console.log("init | 加密模式"); } else if(N_DECRYPT_MODE == a) { console.log("init | 解密模式"); }
var bytes_key = b.getEncoded(); console.log("init key:" + "|str密钥:" + bytesToString(bytes_key)); console.log("init key:" + "|Hex密钥:" + bytesToHex(bytes_key)); return result; } cipher.init.overload('int', 'java.security.Key', 'java.security.AlgorithmParameters', 'java.security.SecureRandom').implementation = function (a, b, c, d) { //showStacks(); var result = this.init(a, b, c, d); if (N_ENCRYPT_MODE == a) { console.log("init | 加密模式"); } else if(N_DECRYPT_MODE == a) { console.log("init | 解密模式"); }
var bytes_key = b.getEncoded(); console.log("init key:" + "|str密钥:" + bytesToString(bytes_key)); console.log("init key:" + "|Hex密钥:" + bytesToHex(bytes_key)); return result; } cipher.init.overload('int', 'java.security.Key', 'java.security.spec.AlgorithmParameterSpec', 'java.security.SecureRandom').implementation = function (a, b, c, d) { //showStacks(); var result = this.init(a, b, c, d); if (N_ENCRYPT_MODE == a) { console.log("init | 加密模式"); } else if(N_DECRYPT_MODE == a) { console.log("init | 解密模式"); }
var bytes_key = b.getEncoded(); console.log("init key:" + "|str密钥:" + bytesToString(bytes_key)); console.log("init key:" + "|Hex密钥:" + bytesToHex(bytes_key)); return result; }
cipher.update.overload('[B').implementation = function (a) { //showStacks(); var result = this.update(a); console.log("======================================"); console.log("update:" + bytesToString(a)); return result; } cipher.update.overload('[B', 'int', 'int').implementation = function (a, b, c) { //showStacks(); var result = this.update(a, b, c); console.log("======================================"); console.log("update:" + bytesToString(a) + "|" + b + "|" + c); return result; } cipher.doFinal.overload().implementation = function () { //showStacks(); var result = this.doFinal(); console.log("======================================"); console.log("doFinal结果: |str :" + bytesToString(result)); console.log("doFinal结果: |hex :" + bytesToHex(result)); console.log("doFinal结果: |base64 :" + bytesToBase64(result)); return result; } cipher.doFinal.overload('[B').implementation = function (a) { //showStacks(); var result = this.doFinal(a); console.log("======================================"); console.log("doFinal参数: |str :" + bytesToString(a)); console.log("doFinal参数: |hex :" + bytesToHex(a)); console.log("doFinal结果: |str :" + bytesToString(result)); console.log("doFinal结果: |hex :" + bytesToHex(result)); console.log("doFinal结果: |base64 :" + bytesToBase64(result)); return result; }
var x509EncodedKeySpec = Java.use('java.security.spec.X509EncodedKeySpec'); x509EncodedKeySpec.$init.overload('[B').implementation = function (a) { //showStacks(); var result = this.$init(a); console.log("======================================"); console.log("RSA密钥:" + bytesToBase64(a)); return result; }
var rSAPublicKeySpec = Java.use('java.security.spec.RSAPublicKeySpec'); rSAPublicKeySpec.$init.overload('java.math.BigInteger', 'java.math.BigInteger').implementation = function (a, b) { //showStacks(); var result = this.$init(a, b); console.log("======================================"); //console.log("RSA密钥:" + bytesToBase64(a)); console.log("RSA密钥N:" + a.toString(16)); console.log("RSA密钥E:" + b.toString(16)); return result; }
var KeyPairGenerator = Java.use('java.security.KeyPairGenerator'); KeyPairGenerator.generateKeyPair.implementation = function () { //showStacks(); var result = this.generateKeyPair(); console.log("======================================"); var str_private = result.getPrivate().getEncoded(); var str_public = result.getPublic().getEncoded(); console.log("公钥 |hex" + bytesToHex(str_public)); console.log("私钥 |hex" + bytesToHex(str_private));
return result; }
KeyPairGenerator.genKeyPair.implementation = function () { //showStacks(); var result = this.genKeyPair(); console.log("======================================");
var str_private = result.getPrivate().getEncoded(); var str_public = result.getPublic().getEncoded(); console.log("公钥 |hex" + bytesToHex(str_public)); console.log("私钥 |hex" + bytesToHex(str_private));
return result; }});
在新建一个窗口
frida -U -f com.xxxx.app.ui -l C:\Users\xxx\Desktop\333.js --no-pause

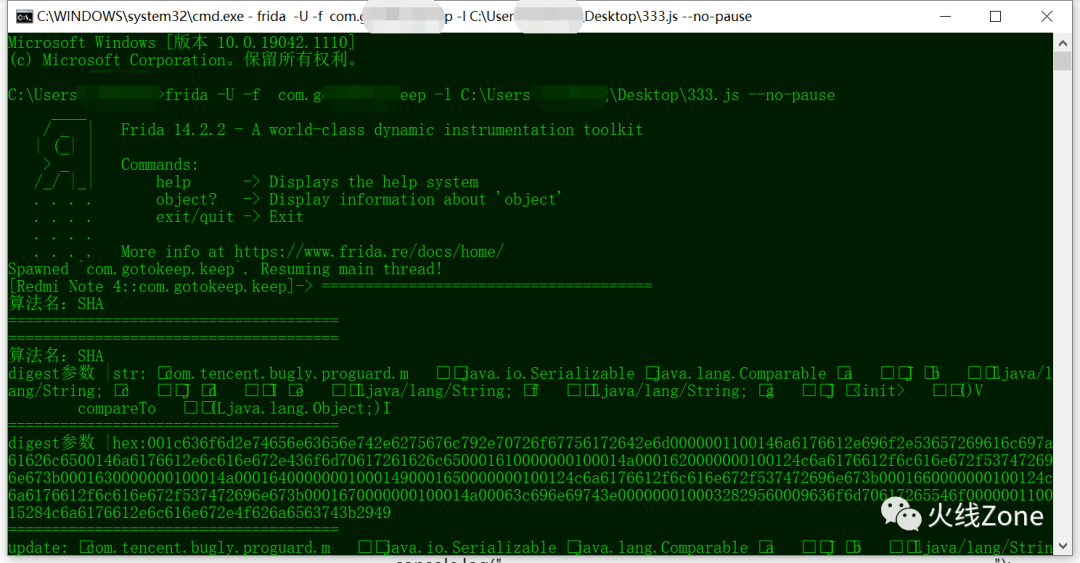

如上图所示，已经在开始自动解密了

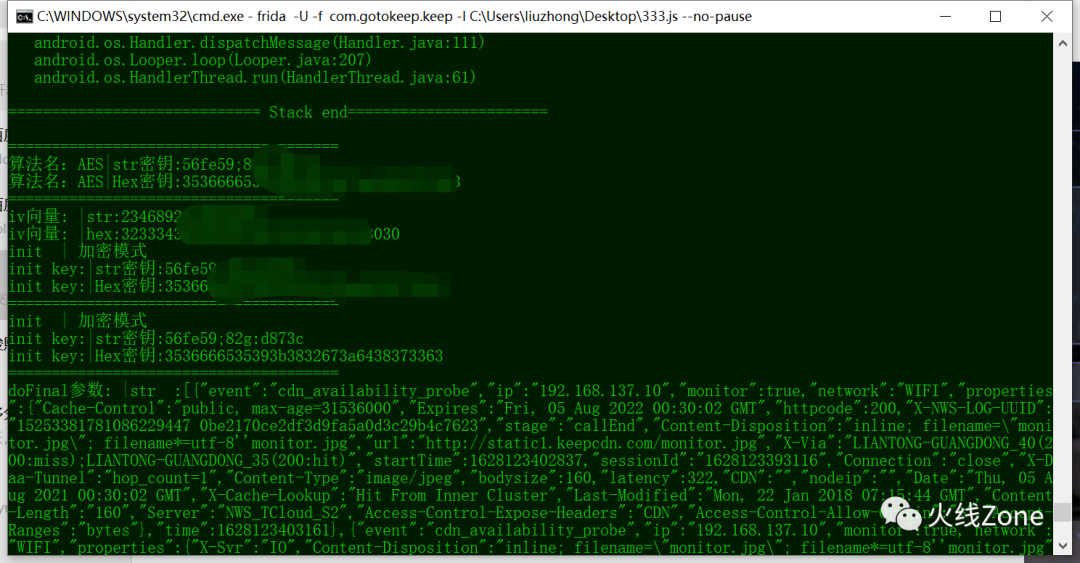

密钥信息已经出来啦，只需要到网上找对应的脚本进行解密就可以了。
